PCA-6775 Half ISA Via Mark CPU Card

Single Board Computers
Microprocessor Training Systems
Custom Engineering & Manufacturing

This page exists for reference only

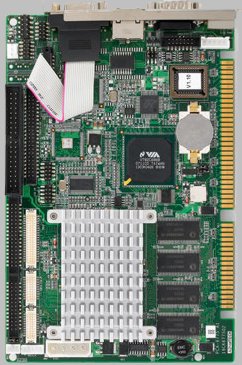

PCM-3350 Image

Features

Specifications

Pricing

PCA-6775 Manual

The PCA-6775 utilizes an onboard VIA 533 or 800 MHz Mark Fanless processor, which has an integrated VIA Twister chipset, making the PCA-6775 one of the smallest and powerful SBCs on the market. The PCA-6775 gives developers a low power, high performing and scalable platform with superior graphics capabilities that can fit into the tightest places. ISA Bus expansion allows features to be quickly added using any ISA Bus expansion module. The PCA-6775 is perfect for applications such as military and industrial automation where uncompromised performance in a limited space is required.

The integrated Savage4™ AGP 4X 3D Graphics core maintains excellent graphics performance and provides VGA/LCD support up to 1280 x 1024. SDRAM memory capacity up to 512MB is large enough to drive the latest operating systems, including Linux, RTAI Real-Time Linux, Microsoft Windows XP/XPE, Windows CE.net, or DOS 6.22. A CompactFlash socket supports Type I/II CompactFlash Cards, which can be used to eliminate the use of fragile hard disks, increasing reliability in harsh environments. Four USB 1.1 ports are available as well as one parallel port (SPP/EPP/ECP modes), one high-speed RS-232 and one high-speed RS-232/485/422 serial port. With its industrial grade reliability, the PCA-6775 can operate continuously at temperatures up to 140º F (60º C) without a fan. The numerous features provide an ideal price/performance solution for high-end commercial and industrial applications where stability and reliability (no moving parts) are essential.

FEATURES

VIA Mark 533MHz or 800MHz Fanless CPU
Supports CompactFlash
Optional SATA Interface
ISA Bus Expansion Interface
10/100BaseT Ethernet & optional Triple LAN
8 GPIO Lines
18-bit LCD & CRT interface

SPECIFICATIONS

Standard SBC Functions

CPU: VIA Mark 533MHz or 800MHz Fanless CPU with Integrated Video
BIOS: AWARD 256 KB Flash BIOS
Chipset: VIA VT8606
RAM: One SODIMM socket accepting up to 512MB of PC133 SDRAM
( PCA-6775F-L has 128MB of SDRAM on-board in addition to SODIMM socket)
SSD: Supports CompactFlash Card TYPE I (share 2nd IDE Channel)
Graphics: Up to 1280 x 1024 CRT, and 1024 x 1024 18-bit LCD
Ethernet: Realtek 8100 10/100 Base-T Fast Ethernet
(PCA-67753F has 3 Realtek 8100 Ethernets)
Audio: AC97 supports CD-In, Line-In, and Line-Out (requires optional module)
Watchdog: 256 level time interval, hardware reset and IRQ selection
IDE interface: 2 x EIDE interface (Supports ATA-100/66/33 IDE devices)
GPIO: 8-bit Digital Input or Digital Output

Super I/O

One PC-AT keyboard/mouse connector
Serial: 1 x RS232, 1 x RS232/422/485
One parallel port
Infrared: 115 Kbps, IrDA 1.1 Compliant

Mechanical and Environmental

Operating Voltage: +5V, 12V at +/- 5%
Power consumption: 5V at 1.64A/12V at 0.01A Typical, 2.20A/0.04A Max
Dimensions: 185 mm x 122 mm (7.3" x 4.8")
Operating temperature: 0-60C (32-140F)

Operating System Compatibility

Linux & RTAI Real-Time Linux
Microsoft Windows XP / XPE
Microsoft Windows CE /CE.net
Microsoft Windows Vista
Microsoft MS-DOS 6.22 & RomDos 6.22

PRICING (Single Unit. Includes: Integration, Setup,Testing, & Enhanced Support)
This product is End of Life. Contact sales for suitable replacement.

PCA-6775F-l .... PCA-6775 Mark 533 Mhz w/ LVDS, 128MB RAM	EOL
PCA-6775F-Q .... PCA-6775 Mark 800 Mhz w/ LVDS	EOL
PCA-67753F-Q ... PCA-6775 Mark 800 Mhz w/ LVDS, 3 LAN	EOL

(Except where noted, RAM & CompactFlash cards are not included.)

Optional Cabling

CAB-40-001-1 ... USB Cable for PCA-6775	CALL
PCM-231A ....... Audio Module	CALL

Available Options
Hard Drives
Flash Memory (CompactFlash™)
Operating Systems
Enclosures & Backplanes
Power Supplies
Custom and Semi-custom Engineering Services

Product pricing, features, and specifications are subject to change without notice.

Linux | Embedded Linux | Real Time Linux
MS-DOS Embedded | ROM DOS
Windows CE | Windows XP Embedded
