PCA-6753 Slot Based SBC

Single Board Computers
Microprocessor Training Systems
Custom Engineering & Manufacturing

PCM-5820-E Image

Features

Specifications

Pricing

PCA-6753 Manual (2.8MB)

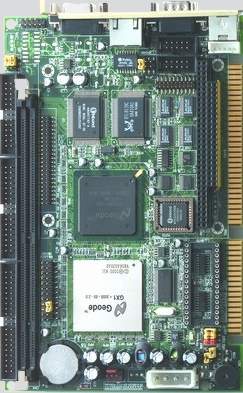

The PCA-6753 is a Half-sized ISA bus SBC with an on-board, embedded low power 300 MHz NS GX1 processor. Other on-board features include a VGA/LCD controller with Universal Memory architecture, 18-bit LCD TFT display, 10/100 Mbps PCI Ethernet interface. A PC/104 expansion connector is provided, plus SSD support for DiskOnChip Flash Disk. A 62-level watchdog timer and jumperless on-line setup is also supported. In addition, the Geode Pentium Classs CPU has been specially designed to work well in environments with temperatures of up to 60°C without need of a fan. Eliminating the CPU fan from a system significantly reduces MTBF worries.

FEATURES

On-board NS GX1-233 MHz CPU or low power GX1-300
ISA Bus Interface
On-board PC/104 expansion connector
On-board 10/100 Base-T Ethernet with wake-up on LAN/Modem
62 Level Watchdog Timer
On-board VGA/LCD Display Controller with Backlight control
DiskOnChip Flash Disk support
Single +5 V power supply
Fanless Operation

SPECIFICATIONS

Standard SBC functions

CPU: On-board NS 300MHz processors
BIOS: AWARD 256 KB Flash memory
Chipset: NS CX5530
System Memory: One 168-pin DIMM socket. Accepts up to 128 MB SDRAM
Enhanced IDE Interface: Supports up to two Enhanced IDE devices. Features BIOS auto-detect and Mode 3, 4 transfer, Ultra DMA 33 mode up to 33 MB/sec
FDD Interface: Supports up to 2 FDDs
Parallel port: One parallel port supports SPP/EPP/ECP parallel mode
Serial ports:
- PCA-6753F - 1x RS-232 and 1x RS-232/422/485 port
- PCA-6753FC - 3x RS-232 and 1x RS-232/422/485 port
Watchdog timer: Software enable/disable intervals at 1 - 62 seconds
Keyboard/mouse connector: Mini-DIN connector for keyboard and PS/2 mouse
USB interface: Two USB ports, USB 1.1 compliant
Infrared port: Supports up to 4 Mbps FIR transmitting rate, IrDA 1.1 compliant
Power management: APM 1.2 compliant power management
PC/104 Expansion: 104-pin 16-bit PC/104 module connector

NS CX5530 VGA Interface

Chipset: NS CX5530
Display memory: 1 ~ 4 MB shared with system memory
Display type: Simultaneously supports for CRT and 18-bit TFT LCD display (supports 3.3 V LCD)
Resolution:
- Non-interlaced CRT monitor resolution up to 1024 x 768 at 16 bpp
- Panel resolution up to 1024 x 768 at 18 bpp TFT panel

Solid State Disk

Supports one DiskOnChip 2000 Flash Disk

Ethernet Interface

Chipset: Realtek™ RTL8139C
Ethernet interface: PCI 10/100 Mbps Ethernet, IEEE 802.3u protocol compatible
Connection: On-board RJ-45 connector

Mechanical and Environmental

Power requirements:
- Maximum: +5 V @ 4 A (4.75 ~ 5.25 V)
- Typical: +5V @ 1.5A (4.75 ~ 5.25 V)
Dimensions: 7.3" x 4.8" (185 mm x 122 mm)
Weight: 0.22 kg (0.48 lbs)
Power supply Voltage: +5 V (4.75 ~ 5.25 V)
Operating temperature: 32° to 140° F (0° to 60° C)
Operating humidity: 0% - 90% relative humidity, non-condensing

Operating System Compatibility

Linux & RTAI Real-Time Linux
Microsoft Windows CE /CE.net
Microsoft Windows NT / NTE
Microsoft MS-DOS 6.22 & RomDos 6.22

PRICING (Single Unit. Includes: Integration, Setup,Testing, & Enhanced Support)
Consider: VSX-6124 or VSX-6324

PCA-6753F-G .... GX1-300 MHZ Slot SBC w/ LAN, VGA/LCD	Call
PCM-6753FC-G ... GX1-300 MHZ SBC w/ LAN, 4 COM, VGA/LCD	Call

(Flash Disk and RAM not included.)

Available Options:

IrDA Adapter Assembly	Call
CAB-40-002-1.... USB Adapter Cable	12.00

System Memory (RAM)
Hard Drives
Flash Memory (DiskOnChip™)
Operating Systems
PC/104 Modules
LCDs and TouchScreens
Enclosures, Backplanes,& Power Supplies
Custom and Semi-custom Engineering Services

Product pricing, features, and specifications are subject to change without notice.
