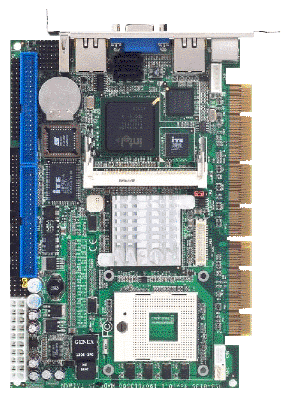

HSB-813S Manual

The HSB-813S is an economic half-size PISA Single Board Computer (SBC) based on the Intel Pentium M 479 Socket with a LVDS VGA controller. The HSB-813S achieves outstanding performance and low power consumption.

Onboard features include two serial ports (one RS-232, & one RS-232/422/485), one multi-mode parallel (ECP/EPP/SPP) port, five USB 2.0 ports, a floppy drive controller, and a PS/2 keyboard/ mouse interface.

HSB-813S supports up to 2GB of DDR333 system memory and the chipset used on the HSB-813S is the Intel 82855GME + Intel 82801DB which supports USB 2.0. Video is provided by an integrated VGA controller in the Intel 82855GME chipset that supports CRT and LVDS simultaneous dual independent display, with up to 128Mb shared system memory. The LCD interface is up to 48-bit and supports dual LVDS display.

FEATURES

• Onboard Intel Pentium M Socket 479
• Integrated 2D/3D Graphic Accelerator
• 5 USB 2.0 Ports
• On board 10/100 Mbps Ethernet with optional 2nd 10/100/1000 BaseT Port
• Supports Compact Flash (SSD)
• 2 Serial Ports
• AC97 Audio
• General Purpose Digital I/O
• PISA Card with ISA, PCI, and Mini PCI Expansion Connectors

SPECIFICATIONS

General Functions

• CPU: Pentium M Socket 479
• BIOS: Award Plug & Play FWH BIOS - 4 Mb ROM
• Chipset: Intel 82855GME + Intel 82801DB
• Memory: Two 200-pin SODIMM DDR sockets, supports up to 2 GB
• Enhanced IDE: Two Ultra ATA-100 (Supports 4 ATAPI devices), Two SATA-I Ports
• FDD interface: Supports a Standard FDD port
• Parallel port: Supports SPP/ECP/EPP modes
• Serial port: One RS232 and one RS232/422/485 serial ports
• IR interface: Supports one IrDA device
• KB/Mouse connector: One Mini-DIN PS/2 Keyboard/Mouse;
  One Internal Keyboard pin header
• USB Ports: Five USB (2.0) Ports
• Expansion: ISA, PCI and Mini-PCI standard connectors
• Battery: Lithium battery for data retention
• Watchdog Timer: 1-255 step, can be set with software on Super I/O

• Video Memory: Shared up to 128MB
• LCD Interface: Up to 48-bit, LVDS/TTL LCD Support
• Display Resolution:
  • CRT Mode: 1280 x 1024 @ 32bpp (100MHz)
  • LCD Mode: 1280 x 1024 @ 24bpp
• Interface: Dual Independent CRT+LVDS

• Chipset: Intel 82562EZ / 82541GI / 82551QM
• Ethernet interface: 10/100 BaseT Ethernet Port
• Optional Ethernet interface: 2nd 10/100 Ethernet or 10/100/1000 Ethernet

• Power supply Voltage: ATX-12V, 5V/12V use only
• Power Consumption: 20 Watts with Pentium 4, 4.1GHz
• Operating Temperature: 32° to 140° F (0° to 60° C)
• Board Size: 7.3 in (L) x 4.8 in (W) (185mm x 122mm)
• Weight: 0.71 lb. (0.3 kg)

Operating System Compatibility

• Linux & RTAI Real-Time Linux
• Microsoft Windows XP / XPE
• Microsoft Windows CE /CE.net
• Microsoft MS-DOS 6.22 & RomDos 6.22
