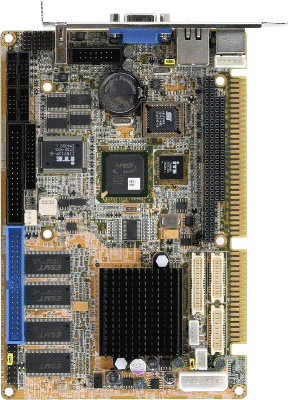

The HSB-800I is an economic half-size ISA Single Board Computer (SBC) based on the AMD LX800 processor with a LVDS/TTL VGA controller and an optional 1000 Base-T Ethernet interface. The HSB-800I achieves outstanding performance and low power consumption.

Onboard features include four serial ports (three RS-232, & one RS-232/422/485), one multi-mode parallel (ECP/EPP/SPP) port, four USB (Universal Serial Bus) ports, a floppy drive controller, and a PS/2 keyboard/ mouse interface.

HSB-800I supports 128MB of onboard DDR400 system memory and the chipset used on the HSB-800I is the AMD +CS5536 which supports USB 2.0. Video is provide by an integrated VGA controller in the AMD LX 800 processor that supports CRT and LVDS simultaneous display.  Moreover, 2D/3D graphics accelerator has been integrated to provide higher performance for graphic processing.  The LCD interface is up to 24-bit and supports both LVDS and TTL LCD.

HSB-800I targets the common industrial applications include factory automation systems and production process control devices. If you are looking for a cost-effective and reliable solution for your essential application, HSB-800I definitely is your first choice.

FEATURES

• Low Power Fanless LX800 500 MHz Processor
• Integrated 2D/3D Graphic Accelerator
• 4 USB 2.0 Ports
• On board 10/100Mbps Ethernet with optional 1000 Mbps Ethernet
• Supports Compact Flash (SSD)
• 4 Serial Ports
• AC97 Audio
• General Purpose Digital I/O
• ISA & PC/104 Expansion Connectors

SPECIFICATIONS

General Functions

• CPU: AMD LX800 500 MHz Processor
• BIOS: Award Plug & Play FWH BIOS - 8 Mb ROM
• Chipset: AMD LX 800 + CS5536
• Memory: On board 128 MB DDR400
• Enhanced IDE: Ultra ATA-33 Drive
• FDD interface: Supports a Standard FDD port
• Parallel port: Supports SPP/ECP/EPP modes
• Serial port: Three RS232 and one RS232/422/485 serial ports
• IR interface: Supports one IrDA device
• KB/Mouse connector: One Mini-DIN PS/2 Keyboard/Mouse;
  One Internal Keyboard pin header
• USB Ports: Three headers & one Type A onboard support four USB 2.0 ports
• GPIO: 4 Inputs & 4 Outputs 5Vdc
• Battery: Lithium battery for data retention
• Watchdog Timer: 1-255 step, can be set with software on Super I/O

• Chipset: LX800
• Video Memory: Shared up to 16MB
• LCD Interface: Up to 24-bit, LVDS/TTL LCD Support
• Display Resolution:
  • CRT Mode: 1600 x 1200 @ 32bpp (100MHz)
  • LCD Mode: 1600 x 1200 @ 24bpp

• Chipset: Realtek 8100C/8110S controller Optional; 10/100Base-T with on-board RJ-45 connectors. Gigabyte LAN Optional
• Ethernet interface: IEEE 802.3u 10/100BASE-T Fast Ethernet compatible

• Power supply Voltage: +5V & +12V AT,
• Operating Temperature: 32° to 140° F (0° to 60° C)
• Board Size: 7.3 in (L) x 4.8 in (W) (185mm x 122mm)
• Weight: 0.71 lb. (0.3 kg)

Operating System Compatibility

• Linux & RTAI Real-Time Linux
• Microsoft Windows XP / XPE
• Microsoft Windows CE /CE.net
• Microsoft MS-DOS 6.22 & RomDos 6.22
