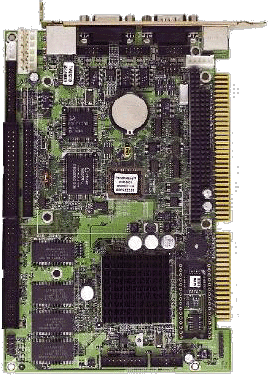

The HSB-440I is equipped with the multi-functioned SystemOnChip STPC Atlas. This Fanless processor speed runs at a speed of 133MHz and offers integrated display control functions. Its has a display resolution maximum 1024 x 768 high quality for CRT and 800 x 600 for LCD, up to 18-bit TFT LCDs are supported.

This card supports Watchdog timer protection. In addition it come equipped with 64 MB memory on board, four serial ports, two USB ports and one parallel port This board also supports one CompactFlash™ card to be used in place of or in conjunction with a hard drive. EMAC provides several size options for CompactFlash™ cards up to over a Gigabyte of storage.

FEATURES

Onboard STPC Fanless Atlas 133 MHz Processor
18-bit TTL TFT LCD & CRT Video
Supports PC/104 Bus Interface
Supports Type II Compact Flash and DiskOnChip
4 COM / 2 USB / Digital I/O
64MB RAM Onboard

SPECIFICATIONS

Standard SBC Functions

CPU: ST Fanless ATLAS 133MHz
BIOS: AWARD 256KB Flash BIOS
On-Board SDRAM: 64 MB SDRAM
Ethernet: Realtek RTL8139D, IEEE 802.3U 100Base-T
Watchdog: 63 Scale, hardware reset and IRQ selection
IDE interface: 1 EIDE Interface (DMA 33)
Expansion: ISA Card & PC/104 16-bit compatible ISA bus

Flat panel/CRT interface

Supports CRT and LCD simultaneous display
Up to 18-bit TTL TFT LCD
Up to 1024x768 @ 16bpp colors for CRT
800x600 @ 18bpp colors for LCD

SSD interface

Type II CompactFlash socket
DiskOnChip socket

Mechanical and Environmental

Operating Voltage: +5V AT power
Power consumption: +5V @ 1.6A
Dimensions: 7.3" x 4.8" (185mm x 122mm)
Operating temperature: 0-60C (32-140F)
Weight: 0.7 Lbs.

Operating System Compatibility

Linux & RTAI Real-Time Linux
Microsoft Windows CE /CE.net
Microsoft Windows NT / NTE
Microsoft MS-DOS 6.22 & RomDos 6.22

THIS PRODUCT IS END-OF-LIFE (Please contact us for a proper replacement)

PRICING (Single Unit. Includes: Integration, Setup, and Testing)

Not Recommended for New Designs. Consider: VXS-6124

HSB-440I ..... Half-size Atlas ISA Slot CPU Card w/ lan, cf	$ Call
HSB-440I-01 .. Half-size Atlas ISA Slot CPU Card	$ Call

(Flash Disk Not Included)

Other Options
Central Processing Unit (CPU)
System Memory (RAM)
Hard Drives
Flash Memory (Compact Flash)
Operating Systems
PC/104 Modules
LCDs and Touchscreens
Enclosures & Backplanes
Power Supplies
Custom and Semi-custom Engineering Services

Product pricing, features, and specifications are subject to change without notice.
