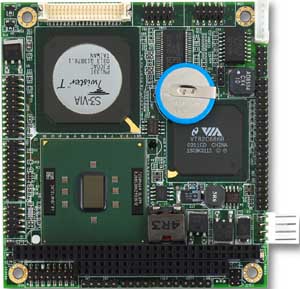

EMC-i613 Celeron/Pentium 3 SBC

Features

Specifications

Pricing

EMC-i613 Manual (720KB)

The Em104-i613 utilizes an onboard Intel Ultra-Low Voltage Fanless Celeron 400 or 650Mhz CPU, along with the VIA Twister chipset, making the Em104-i613 one of the smallest and most powerful SBCs on the market. Unlike other high-end PC/104 SBCs, the Em104-i613 maintains the true PC/104 standard form-factor and does not require “wings”. The Em-i613 gives developers a low power, high performing and scalable platform with superior graphics capabilities that can fit into the tightest places. PC/104- I/O expansion allows features to be quickly added using any one of EMAC’s many PC/104 expansion modules. The Em104-i613 is perfect for applications such as military and industrial automation where uncompromised performance in a limited space is required.

The Em104-i613 provides the quality features available on SBC boards several times its size. The VIA VT8606 Twister™ North Bridge with integrated Savage4™ AGP 4X 3D Graphics core maintains excellent graphics performance and provides VGA/LCD support up to 1280 x 1024. SDRAM memory capacity up to 512MB is large enough to drive the latest operating systems, including Linux, RTAI Real-Time Linux, Microsoft Windows XP/XPE, Windows CE.net, Windows NTE, and DOS 6.22. A CompactFlash socket supports Type I/II CompactFlash Cards, which can be used to eliminate the use of fragile hard disks, increasing reliability in harsh environments. Two USB 1.1 ports are available as well as one parallel port (SPP/EPP/ECP modes) and 2 high speed serial ports (RS-232 and RS-232/422/485). With its industrial grade reliability, the Em104-i613 can operate continuously at temperatures up to 104º F (40º C) without a fan and up to 140º F (60º C) with a fan. The numerous features provide an ideal price/performance solution for high-end commercial and industrial applications where stability and reliability (no moving parts) are essential.

FEATURES

CPU: Intel Ultra Low Voltage Embedded Celeron 400 MHz or Celeron 650 MHz
Fanless, 0 ~ 60°C (32 ~ 140°F) operation
Network: Realtek RTL8100BL, 10/100 Mbps, Wake-On-LAN supported
Display Chipset: S3® Savage4™
Display: Flat Panel/CRT and TFT/DSTN LCD

SPECIFICATIONS

Standard SBC Functions

CPU: Intel Ultra Low Voltage Embedded Celeron 400 MHz or Celeron 650 MHz processor with FSB 100/133 MHz µBGA package
L2 Cache: Integrated on CPU (256 KB ~ 512 KB)
Chipset: VIA VT8606 Twister™ North Bridge with integrated Savage4™ AGP 4X Graphics core and VT82C686B “Super” Southbridge
BIOS: 2 MB AWARD® Flash BIOS
"Green Function": Power saving options supported in BIOS. DOZE / STANDBY
DRAM Memory: One 144-pin SODIMM socket supports up to 512 MB
IDE Interface: One 44-pin (2.0 mm pitch) connector (IDE supports DMA33)
Floppy Interface: One floppy disk drive connector
Serial Ports: Two high speed COM ports, one RS-232C, one RS-232C/422/485 port (jumper selectable). Both with
16C550 compatible UART and 16 byte FIFO
Parallel Port: Supports SPP, EPP, and ECP modes
USB Ports: Two onboard USB ver 1.1 ports
IrDA: Support SIR IrDA 1.1 compliant
Watchdog Timer: 1 - 255 sec, system reset or NMI
Real Time Clock: RTC with Lithium Battery
Keyboard and Mouse Connectors: One PS/2 keyboard and one PS/2 mouse

VGA/Flat-Panel Interface

Chipset: 4x AGP S3® Savage4™ 3D and S3® Savage 2000™ 2D engines integrated in VT8606
Video Memory: Supports up to 32 MB (shared) memory
Display Type: Flat Panel and CRT displays
Resolution: Up to 1280 x 1024 @ 32bpp
LCD Interface: Flat Panel 36-bit TFT/DSTN interface

Ethernet Interface

Chipset: Realtek RTL8100BL, Wake-On-LAN supported
Interface: 802.3u, 10/100Mbps, 10-pin onboard pin header

Solid State Disk

One CompactFlash™ socket supports Type I/II CompactFlash™ Cards (CFC).
Capacity of 1 GB+

Bus Interface

PC/104 (8/16-bit ISA)

Mechanical and Environmental

Power Requirements: +5 V @ 2.1 A (typical); (ULV Celeron 400 MHz
and 512 MB SDRAM)
Operating Temperature: 32 to 140°F (0 to 60°C)
System Monitoring and Alarm: CPU and System temperature, system voltage
Board Dimensions: 3.5" x 3.8" (90 mm x 96 mm)
Board Weight: 0.4 lbs. (0.11 kg)

Operating System Compatibility

Linux & RTAI Real-Time Linux
Microsoft Windows XP / XPE
Microsoft Windows CE /CE.net
Microsoft Windows NT / NTE
Microsoft MS-DOS 6.22 & RomDos 6.22
Wind River VxWorks
QNX Neutrino RTOS

Not Recommended for New Designs. Consider: PFM-540I

PRICING (Single Unit. Includes: Integration, Setup, and Testing)

EM104-I613/C400C ... EmCore-i613 ULV Celeron 400 PC/104 SBC	320.00
EM104-I613/C650C ... EmCore-i613 ULV Celeron 650 PC/104 SBC	Call

(Flash Disk and Memory not included.)
