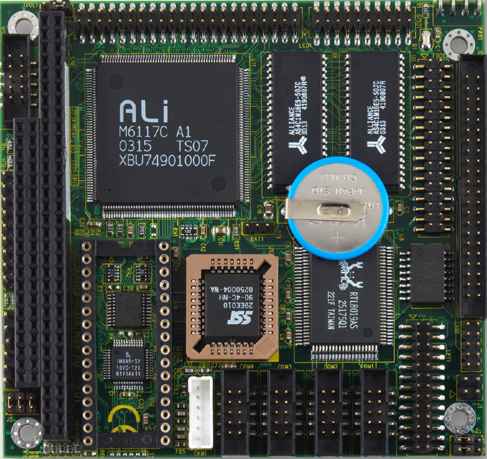

The EM104-i313 comes equipped with an embedded microcontroller ALi M6117C which is Intel® 386SX-40 compatible. In addition, it comes with two serial ports (RS-232), one bi-directional printer port supporting SPP/ECP/EPP modes, an IDE HDD interface and a floppy disk controller. With its industrial grade reliability, the EM104-i313 can operate continuously at temperatures up to 140º F (60º C).

The EM104-i313 is specially designed as a compact all-in-one CPU card which incorporates a PC/104 connector into its design, making non-passive backplane SBC applications possible. The numerous features provide an ideal price/performance solution for high-end commercial and industrial applications where stability and reliability are essential.

The EM104-i313 features an SVGA interface which supports CRT and Flat Panel (TFT, DSTN, MONO and EL) displays, with 1 MB onboard display memory.

FEATURES

Onboard ALi M6117C, Intel® 386SX-40 compatible CPU
Onboard 4 MB EDO DRAM
TOPRO TP 6508IQ VGA/LCD controller with 1 MB display memory

SPECIFICATIONS

General Functions

CPU: ALi M6117C, Intel® 80386SX-40 compatible
CPU type: Onboard SQFP
Bus interface: PC/104 bus
BIOS: AMI 128KB FLASH BIOS
Chipset: ALi M6117C
I/O Chipset: ITE8661F
Memory: Onboard 4 MB Fast Page DRAM
Enhanced IDE: Supports up to two IDE devices
FDD interface: Supports up to two floppy disk drives, 5.25" (360KB and 1.2MB) and/or 3.5" (720KB, 1.44MB, and 2.88MB)
LAN: 10 Mbps, NE2000 compatible
Parallel port: One bi-directional parallel port. Supports SPP/ECP/EPP modes
Serial port: Three RS-232 and one RS-232/422/485 serial ports. Ports can be configured as COM1, COM2, COM3, COM4, or disabled individually. (16C550 equivalent)
KB/Mouse connector: 8-pin connector supports PC/AT keyboard and PS/2 mouse
Battery: Lithium battery for data retention
Watchdog timer: Can generate a system reset, IRQ15 or NMI. Software selectable time-out interval (30.5 µs ~ 512 sec., 30.5 µs/step)
DMA: 7 DMA channels (8237 equivalent)
Interrupt: 15 interrupt levels (8259 equivalent)

Flat Panel/CRT Interface

Chipset: TOPRO TP 6508IQ
Display memory: Onboard 1 MB display memory
Display type: Supports non-interlaced CRT/LCD (TFT, DSTN, MONO and EL) displays. Can display both CRT and Flat Panel simultaneously
Resolution: Support up to 1024x768 @ 64K colors

LAN Interface

Chipset: Realtek 8019AS single chip, 10 Mbps, NE2000 compatible
Connector: 8-pin mini header

SSD Interface

Solid State Disk: One 32-pin DIP socket supports M-Systems DiskOnChip® 2000 series up to 1 GB

Mechanical and Environmental

Power supply Voltage: +5V (4.75V to 5.25V)
Power requirement:
- Typical: +5V @ 1A
- Maximum: +5V@3A
Operating temperature: 32° to 140° F (0° to 60° C)
Board size: 3.55"(L) x 3.775"(W) (90mm x 96mm)
Weight: 0.6 lb. (0.25 Kg)

Operating System Compatibility

Linux
Microsoft MS-DOS 6.22 & RomDos 6.22

PRICING (Single Unit. Includes: Integration, Setup, and Testing)

EM104-i313DVL/4S ... 386SX-40 SBC w/ VGA-LCD/ & 4 MB DRAM

$230.00

(DiskOnChip® flash disk not included.)

Available Options
Hard Drives
Flash Memory (DiskOnChip®)
Operating Systems
PC/104 Modules
LCDs and Touchscreens
Enclosures
Power Supplies
Custom and Semi-custom Engineering Services

Product pricing, features, and specifications are subject to change without notice.
