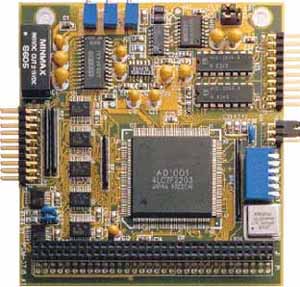

PCM-3718H/HG Data Acquisition Module

The PCM-3718H / 3718HG is a high performance multifunction data acquisition module that attaches to the PC/104 connector on your CPU card or PC/104 module. It offers 12-bit A/D conversion and digital input/output. The automatic channel scanning circuitry and the on-board SRAM lets you perform multiple-channel A/D conversion with DMA and individual channel gains

FEATURES

16 single-ended or 8 differential analog inputs
12-bit A/D converter, up to 100 KHz sampling rate with DMA transfer
Two 8-bit digital input/output TTL level channels

SPECIFICATIONS

Analog Input

Channels: 16 single-ended or 8 differential inputs
Resolution: 12 bits
Input Range: Bipolar: ą10, ą5, ą2.5, ą1.25, ą0.625
(PCM-3718H): Unipolar: 0 ~ 10,0 ~ 5,0 ~ 2.5,0 ~ 1.25
Input Range: Bipolar: ą10, ą5, ą1, ą0.5, ą0.1, ą0.05, ą0.01, ą0.005
(PCM-3718HG): Unipolar: 0 ~ 10, 0 ~ 1, 0 ~, 0 ~ 0.01

Digital Input/Output

Channels: two 8-bit TTL-level Digital I/O channels
Input Voltage:

o Logic 0: 0.8 V max.

o Logic 1: 2.0 V min.
Output Voltage:

o Logic 0: 0.33 V max. @ 6mA (sink)

o Logic 1: 3.84 V min. @ 6mA (source)
Power Requirements: +5 V, ą5 % tolereance on power supply
Size / Weight: 96 mm x 90 mm (3.8" x 3.5"), 0.084 kg (0.185 lb)
Operating Temperature: 0° ~ 60° C (32° ~ 140° F)
Storage Temperature: -40° ~ 85° C (-40° ~ 185° F)
Operating Humidity: 0% ~ 90% relative humidity, non-condensing

PRICING (Single Unit. Includes: Integration, Setup, and Testing)

PCM-3718H/HG ... 16 Ch., 100 KHz, 12 Bit A/D

USD 224.00

Available Options
Single Board Computers (SBC)
Wiring Terminals and Interface Modules
Custom and Semi-custom Engineering Services

Product pricing, features, and specifications are subject to change without notice.
