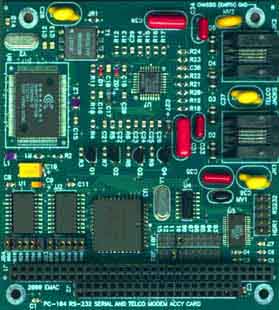

PCM-36E05 PC/104 FAX MODEM

Introducing, the PCM-36E05 data/fax modem module with an additional RS-232 COM port. The PCM-36E05 incorporates the SmartSCM Single Chip Modem, which meets the ITU-T V.90 standard of 56K bps maximum data transmission speed and supports the G3 fax standard of 14.4 K fax transmission rate. The PCM-36E05 is also available in 33.6 Kbps and 14.4 Kbps data transmission speed versions.

The SmartDAA technology eliminates the need for a costly analog transformer, relays, and opto-isolators typically used in discrete DAA implementation. The SmartDAA operates reliably without drawing power from the line, unlike line-powered DAAs which operate poorly when line current is insufficient due to long lines or poor line conditions. In addition, the rugged industrial PC/104 form factor makes it a great fit for space-limited and harsh environment applications.

FEATURES

SmartSCM V.90/K56flex Single Chip Modem
SmartDAA Technology
Data mode: V90, K56flex, V.34, V.32bis, V.32, V.23, V.22bis, V.22, V.21, Bell 212, Bell 103
Fax mode: ITU-T G3 Fax modulation CLASS 1 & 2 command, ITU-T T.30, V.17, V.29, V.27ter, V.21
Error correction & data compression: LAPM and MNP 2 - 4, MNP 5, V.42, V.42 bis
High speed 16550A UARTS
Additional RS-232 serial port
Uses Single 5 V DC Supply

SPECIFICATIONS

Data mode: ITU-T V.90, K56Flex, V.34, V.32bis, V.32, V.23, V.22 bis, V.22, V.21, Bell 212A/103
Fax mode: ITU-T Group 3 facsimile, T.30, V.17, V.29, V.27ter, V.21 CH2. EIA/TIA 578 Class1 and T.31 Class 1.0, and EIA/TIA 578 Class 2 commands.
Hardware error correction and data compression: ITU-T V.42 LAPM and MNP 2-4 error correction; ITU-T V.42 bis and MNP 5 data compression
Modem speed: 56 Kbps max.
Fax speed: 14.4 Kbps
Dialing type: Pulse or Tone
Power consumption: 60 mA (typical @ 5Vdc)

PRICING (Single Unit. Includes: Integration, Setup, and Testing)

PCM-36E05C ... 56 K Fax/Modem PC/104 Module	185.00
PCM-36E05B ... 56 K Fax/Modem PC/104 Module	175.00

Available Options
Single Board Computers (SBC)
Custom and Semi-custom Engineering Services

Product pricing, features, and specifications are subject to change without notice.
