PCM-3664

This product is End of Life. This Page exists for reference only.

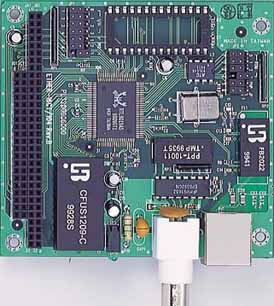

PCM-3664 PC/104 10 Base-T/10 Base-2 Ethernet Module

Features

Specifications

Pricing




The PCM-3664 is a high performance 16-bit jumperless Ethernet interface module that attaches to the PC/104 connector on your CPU card or PC/104 CPU module. The module automatically senses whether it is connected to an 8-bit or 16-bit PC/104 system. The PCM-3664 fully complies with IEEE 802.3 10 Mbps CSMA/CD standards and is 100% Novell NE2000 compatible. It includes a built-in 10 Base-T transceiver, an RJ-45 connector, an onboard BNC connector supporting 10 Base-2, and two diagnostic LEDs which indicate the operating status of the module and the network.


FEATURES

  • Automatically detects 8-bit or 16-bit
  • On board 32 K byte buffer for multi-package
  • 10 Base-T & 10 Base-2 Ethernet
  • NE2000, PCM-3660 fully compatible
  • BNC connector on-board


SPECIFICATIONS

General

  • Chipset: Realtek™: RTL 8019AS
  • Hardware and software compatible with Novell NE2000 adaptor
  • 8-bit, 16-bit or auto-sending
  • Remote boot ROM socket for diskless operation
  • Built-in 10Base-T transceiver for unshielded twisted pair cabling up to 100 m
  • Onboard 32 K memory for high-performance multipackage buffer
  • Software drivers for most popular network environments
  • BNC connector on board
  • AUI connector supports external MAUs
  • NDIS 3.0 miniport driver for Windows NT 3.1, Windows NT 3.5 and Windows 95, NDIS 4.0 miniport driver for Windows 98
  • OS2 driver
  • Netware server driver
  • Built-in IEEE 802.3 10 Mbps CSMA/CD 10Base-T, 10Base-2

Mechanical and Environmental

  • Power consumption: +5 V @ 400 mA (typical)
  • Power requirement: +5 V @ ±5% tolerance on power supply
  • Size/Weight: 96 mm x 90 mm (3.8" x 3.5"), .088 kg (.194 lb)
  • Operating Temperature.: 0° ~ 70° C (32° ~ 158° F)
  • Storage Temperature: -40° ~ 85° C (-40° ~ 185° F)
  • Operating humidity: 0 ~ 90% Rel. Humd., noncondensing


PRICING (Single Unit. Includes: Integration, Setup,Testing, & Enhanced Support)
This product is End of Life. Contact sales for suitable replacement.

PCM-3664 ... PC/104 10 Base-T & 10 Base-2 Ethernet Module

USDCALL



Available Options
Single Board Computers (SBC)
 Custom and Semi-custom Engineering Services


Product pricing, features, and specifications are subject to change without notice.
