PCM-3660 Ethernet Module

This product is End of Life. This Page exists for reference only.

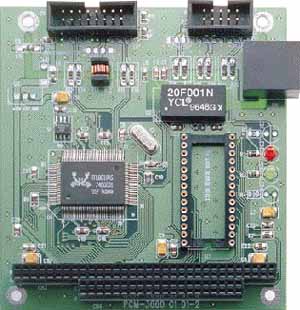

PCM-3660 PC/104 10 Base-T Ethernet Module

Features

Specifications

Pricing



FEATURES

  • Hardware and software compatible with Novell NE2000
  • 10 Mbps throughput
  • 8/16-bit data bus (auto-sending)
  • Remote boot ROM socket for diskless operation
  • I/O: 300, 320, 340 or 360Hz




SPECIFICATIONS

  • I/O Address: 200, 220, 240, 260, 280, 2A0, 2C0, 300, 320, 340, 380, 3A0
  • Interrupt Level: IRQ 3, 4, 5, 9, 10, 11, 12 or 15
  • Boot ROM Address: C0000, C8000, D0000, or D8000H
  • Data Bus: 8-bit, 16-bit, or auto-sending
  • Connector: 16-bit PC/104 stackthrough connector RJ-45 connector for 10Base-T, 16-pin insulation displacement connector for AU1
  • Standard: IEEE 802.3 10 Mbps CSMA/CD 10Base-T Transceiver
  • Power Consumption: +5 V @ 400 mA max.


PRICING (Single Unit. Includes: Integration, Setup,Testing, & Enhanced Support)
This product is End of Life. Contact sales for suitable replacement.

PCM-3660 ..... 10 Base-T Ethernet PC/104 Module

USDCALL

PCM-3660-c ... 10 base-T Ethernet PC/104 Module w/ aui interface

USDCALL



Available Options
Single Board Computers (SBC)
 Custom and Semi-custom Engineering Services


Product pricing, features, and specifications are subject to change without notice.
