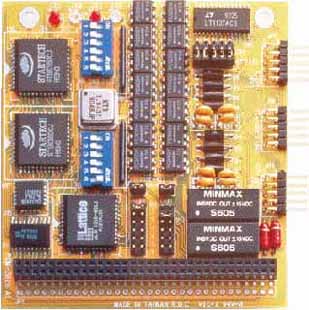

The PCM-3610 isolated dual-port RS-232 and RS-422/RS-485 interface module supports all popular serial communication protocols and provides reliable high speed communication over long distances (4000 ft/1.2 km)

FEATURES

• High speed transmission rate
• Automatic RS-485 data flow control
• Jumper selectable interrupt level
• Supports Windows® 95/98/ME/NT/2000/XP, Linux, Windows CE driver

SPECIFICATIONS

• Channel 1: RS-232, 422, or 485
• Channel 2: RS-422 or RS-485
• Baud Rate: 50 ~ 115,200 bps
• Character Length: 5,6,7, or 8 bits
• Parity: Even, odd, or none
• Stop Bit: 1, 1.5, or 2
• Interrupt Level: IRQ 3,4,5,6,7,9
• I/O Connectors: Dual male DB-9
• Power Consumption: +5 V @ 400 mA (typical)
• Power Requirements: +5 V, ±5 % tolerance on power supply
• Size/Weight: 96 mm x 90 mm (3.8" x 3.5"), 0.11 kg (0.242 lb)
• Operating Temperature: 0° ~ 65° C (32° ~ 140° F)
• Storage Temperature: -40° ~ 85° C (-40° ~ 185° F)
• Operating Humidity: 0% ~ 90% relative humidity, non-condensing
• Isolation: 1000 V_DC

PRICING (Single Unit. Includes: Integration, Setup, and Testing)

PCM-3610 ... PC/104 Isolated Dual Port RS232 & RS-422/485

163.00
