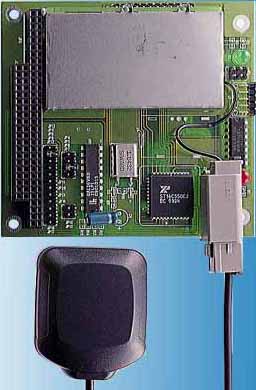

PCM-3292 PC/104 GPS Module

The PCM-3292 GPS module is designed with sophisticated satellite technology to locate and track any location in the world, in real-time. Using a Rockwell ® 12-channel GPS engine that provides differential input for use of DGPS to assure pinpoint accuracy, the PCM-3292 offers a wide range of GPS functions such as position, navigation, satellite and timing information for use in embedded-PC navigation systems.

The most notable difference between the
PCM-3292 and its competitors is that the operating temperature range has now been extended to cover from -30°C ~ 85°C. Combine this new temperature
capability with the rugged industrial grade construction and the new application possibilities become apparent.

FEATURES

Extended operating temperatures: -30° ~ 85°C (-22° ~ 175 °F)
Industrial grade construction: Designed to reliably operate in the harshest environments.
Cost-effective GPS solution
Solid and proven Rockwell® 12-channel GPS engine
Compact and rugged
Low Voltage/low noise operation
Accurate performance

SPECIFICATIONS

Standard Functions

Control Chipset: Rockwell® Jupiter
Receiving Channel: 12 channel parallel
Receiving Frequency: 1575.42 MHz ±10 MHz (C/A code)
Receiving Sensitivity: Under -145 dBm
Navigation Update Rate: Optional (default 1 second)
Tracking Performance Acceleration: Up to 4 G
Time to First Fix: Cold start 50 seconds, Warm start 35 seconds, Quick Start 3 seconds
Positioning System Default: WGS-84

Mechanical and Environmental

Power Requirements: 3.3 V ± 5 %, ripples within 50 mV p-p
Power Consumption: + 5 V @ 300 mA (typical)
Operating Temperature: -30° ~ 85°C (-22° ~ 175°F)
Operating Humidity: 0% to 95% relative humidity, non-condensing
Accuracy (Velocity): 0.2 m/s (50%)
Accuracy (Position): 10 m CEP (50%)
Board Dimensions: 96 mm x 90 mm (3.77" x 3.54") (L x W)
Weight: 102 g (0.224 lbs.)

PRICING (Single Unit. Includes: Integration, Setup,Testing, & Enhanced Support)

For a replacement Contact Us

PCM-3292 ... 12 ch. GPS Module w/ACT Antenna

USD CALL

Product pricing, features, and specifications are subject to change without notice.
