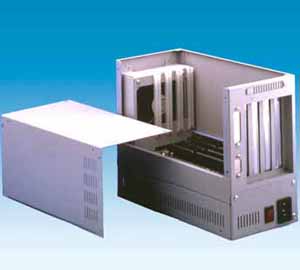

MBPC-641 (open view)

The MBPC-641 MicroBox IPC chassis is an ultra-compact 4-slot IPC chassis for embedded control systems or other limited-space applications. Its small size and rugged design make it excellent for vending machines, mobile computer systems, and unattended controllers.

The MBPC-641 provides the necessary framework for building a complete PC control system. It supports most half-size CPU cards, and is equipped with a mounting panel for special connectors or cable extensions. In addition, the MBPC-641 reserves one RS-232 port and one parallel port. Also included is a 65-Watt power supply with power On/Off switch.

FEATURES

4-slot ISA-bus (PC/AT-compatible) passive backplane
Supports most half-size CPU cards
Positive air pressure in chassis repels dust
Compact and rugged design
Open slot on chassis for convenient drive cable connection
Bi-directional mounting bracket
Includes one cooling fan/filter
Provides space for one RS-232 serial port and one parallel port
65-Watt power supply
Power On/Off switch that lights up when powered

SPECIFICATIONS

General Specifications

Construction: Heavy duty steel
Controls: Power On/Off switch
Cooling fan: One 49 CFM fan with removable air filter
Dimensions: 114 mm x 197 mm x 245 mm (4.5" x 7.8" x 9.6")
Weight: 2.8 kg (6 lbs)
Paint color: Pantone 414u (light gray)
Safety: TÜV approved
CE compliant

Passive Backplane (PCA-6104B)

Slots: 4 ISA bus, half size
PC board: 4-layer PCB with ground and power planes for reduced noise and lower power supply impedance
Indicators: LEDs for +5 V, +12 V and -12 V

Power Supply

Output rating: 65 Watts (max.)
Input Voltage: 85 ~ 132 VAC or 180 ~ 264 VAC @ 50 ~ 60 Hz, autoranging
Output Voltage: +5 V @ 5 A, +12 V @ 1.7 A, -12 V @ 1.7 A
MTBF: 50,000 hours
Safety: UL/CSA/TÜV approved
EMI: Meets FCC/VDE Class A

PRICING (Single Unit. Includes: Integration, Setup, and Testing)

MBPC-641 ... 4-slot MicroBox IPC Chassis

USD 273.00
