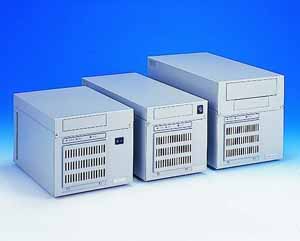

IPC-6806 Series Chassis

The IPC-6806 Series desktop/wallmount IPC chassis is an ultra-compact 6-slot IPC chassis for embedded control systems or other limited-space applications. Its small size and rugged design make it excellent for system integrators or users who require a compact, rugged PC/AT compatible system such as vending machines, mobile computer systems, and unattended controllers.

The IPC-6806 Series provides the necessary framework for building a complete PC control system. It supports most half-size CPU cards, and is equipped with a mounting panel for special connectors or cable extensions. In addition, the IPC-6806 Series reserves two RS-232 ports and one parallel port. Also included is a 150, 250 or 300 Watt power supply.

FEATURES

Compatible with 6 Slot passive backplane
Supports most half-size CPU cards
Positive air pressure in chassis repels dust
Compact and rugged design
Open slot on chassis for convenient drive cable connection
Bi-directional mounting bracket
Includes one cooling fan/filter
Provides space for two RS-232 serial ports and one parallel port
2 USB on Front
150, 250 or 300 Watt power supply

SPECIFICATIONS

General Specifications

Construction: Heavy-duty steel
Disk Drives: One 3.5" FDD and one 3.5" HDD
Indicators: Power and HDD LEDs
Controls: Power and Reset switch
Cooling fans: One 53 CFM fan on front panel with air filter
Dimensions: (W x H x D): 191 mm x 170 mm x 285 mm (7.5" x 6.7" x 11.2")
Net weight: 4.5 kg (9.9 lbs)
Paint color: Pantone 414u (light gray)

Environmental Specifications

Operating temperature: 0° ~ 40° C (32° ~ 104° F)
Relative humidity: 10 ~ 85% @ 40° C, non-condensing
Vibration (operation): 5 ~ 500 Hz, 0.5 Grms
Shock (operation): 10 G acceleration peak (11 ms duration)
Safety: UL/cUL approved
CE compliant

Power Supply

Output rating: 150 Watts (max.)
Input Voltage: 100 ~ 240 VAC @ 50 ~ 60 Hz (Full range)
Output Voltage:+5 V @ 16 A, +3.3 V @ 10 A, +12 V @ 9 A, -12 V @0.7 A,
-5 V @ 0.2 A, +5 Vsb @ 1.5 A
MTBF: 84,000 hours @ 25° C, full load
Safety: CE/UL/TUV/CB/CCC approved
EMI: Meets FCC/VDE Class A

PRICING (Single Unit. Includes: Integration, Setup,Testing, & Enhanced Support)

IPC-6806S ..... 6 slot Chassis w/ 150W PS	260.00
IPC-6806BP .... 6 slot Chassis w/ 250W PS	275.00
IPC-6806WB .... 6 slot Chassis w/ 300W PS & CD-ROM Bay	306.00

Available Back Planes

PCA-6106 ...... 6 slot ISA back Plane	35.00
PCA-6106P3 .... 6 slot 2ISA, 2PCI,1PICMG,1PICMG/PCI Backplane	49.00
PCA-6106P4 .... 6 slot 4 PCI, 2 PICMG Backplane	49.00

Available Options
Single Board Computers (SBC)
Central Processing Unit (CPU)
System Memory (RAM)
Hard Drives
Flash Memory (CompactFlash™ and DiskOnChip®)
Operating Systems
PC/104 Modules
Wiring Terminals and Interface Modules
LCDs and Touchscreens
Backplanes (PICMG, PCI, and ISA)
Enclosures and Power Supplies
Signal Conditioning Cards
Custom and Semi-custom Engineering Services

Product pricing, features, and specifications are subject to change without notice.
