iPac-9302

This product is End-of-Life and no stock remains. Please contact our Sales Department for the recommended replacement or consider.

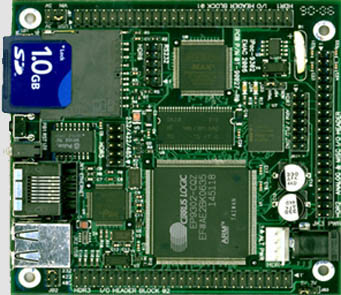

EMAC has created the iPac-9302, an inexpensive, feature packed embedded Single Board Computer (SBC) based on the Cirrus EP9302 processor. This ARM9 based board has features, similar to our other Microcontrollers, A/D, PWM, Digital I/O, Serial, USB, and Ethernet. Pricing based on IPAC 9302 IPAC 9302 W/ 16MB FLASH & RAM

  • Cirrus Logic EP9302 ARM9 200 Mhz Processor with 100 Mhz System Bus
  • 1 RS232 Serial Port with handshake
  • 1 RS232/422/485 configurable Serial Port
  • 16 MB of External Flash

Product Variations

PRODUCT # DESCRIPTION PRICE
i302-01-01013 IPAC 9302 IPAC 9302 W/ 16MB FLASH & RAM Call
i302-01-02013 IPAC 9302 IPAC 9302 W/ 32MB FLASH & RAM Call
i302-01-03013 IPAC 9302 IPAC 9302 W/ 64MB FLASH & RAM Call

Additional information

BRAND

EMAC, Inc.

FORM FACTOR

PC/104

PROCESSOR TYPE

Cirrus Logic EP9302 ARM9

PROCESSOR CORES

Single

PROCESSOR CLOCK SPEED

200 MHz

RAM TYPE

DDR Onboard

RAM

see datasheet

VIDEO OUT

N/A

ETHERNET

1x 10/100BASE-T LAN

Wireless

see datasheet

STORAGE

MicroSD Card, 16 MB Onboard

SERIAL PORTS

4x Serial ports (3x RS-232, 1x RS-232/422/485)

USB 3.0

N/A

USB 2.0

2x USB 2.0

SERIAL (OTHER)

SPI

AUDIO

N/A

EXPANSION

IO Header

LOW OPERATING TEMPERATURE

0°C (32°F)

HIGH OPERATING TEMPERATURE

60°C (140°F)

ENVIRONMENTAL MISC.

Operating temperature 0°C to 70°C (32°F to 158°F)

Description

This product is End-of-Life and no stock remains. Please contact our Sales Department for the recommended replacement or consider.
EMAC has created the iPac-9302, an inexpensive, feature packed embedded Single Board Computer (SBC) based on the Cirrus EP9302 processor. This ARM9 based board has features, similar to our other Microcontrollers, A/D, PWM, Digital I/O, Serial, USB, and Ethernet. The iPac-9302 is a web enabled microcontroller device offering the ability to run an embedded server to display it’s current monitored or logged data. This web connection can be via standard wired 802.3u 10/100 BaseT Fast Ethernet or 802.11 wireless wifi networking with the proper linux modules and adapters. This Microcontroller has all connectors brought out as headers on a board that is same footprint of a standard PC/104 module at 3.77″ x 3.54″. While slightly larger than our SoM Microcontroller offerings, this iPac-9302 is perfectly suited for just about any Embedded Data Acquisition and Control application.

Also available is an optional Screw Terminal board(PCD-39E00-000) for the iPac (shown to the right) that is stackable, providing numerous I/O points with screw termination, in a very small package. Two Screw Terminal boards are required to accommodate all of the iPac I/O.

The resident flash on the iPac can be programmed via it’s serial bootloader firmware over the RS232 com port or via it’s JTAG port. Software can be written with Microsoft’s .NET Micro Framework, Windows CE 6.0 or Linux (Open Embedded).

On the Linux side EMAC provides a Free Eclipse IDE that is pre-integrated to provide everything the user needs for developing iPac 9302 applications. All the compiling, converting debugging, and downloading inherent to iPac 9302 development can be done from one easy to use high level interface. The distribution provides an SDK for the EMAC iPac 9302 which contains source examples for the Ethernet, USB, Digital I/O ports, A/D, PWM, SPI, SD/MMC.

The EMAC Eclipse IDE is a powerful, yet flexible Integrated Development Environment for the iPac 9302 and even features SVN version control support. For more information of EMAC’s Eclipse based Development Environment click here.

The iPac 9302 can use most of the EMAC’s standard Linux Modules including the Modbus module. For a listing of these module see our Embedded Linux Operating Systems Page.

Just Write It and Run It!
