SOM-AQ7BT
- Intel® Atom™ E3800 series or N2807 Processor
- Up to 4GB Memory Onboard Memory
- 1x Gigabit Ethernet
- LVDS & HDMI Display 2x SATA
- 1x USB3.0, 2x USB2.0, 8x GPIO, 3x PCI-Express 〔x1)
- Qseven rev2.0, 70mm x 70mm
Receive consultation or quotes about this product from our sales staff.

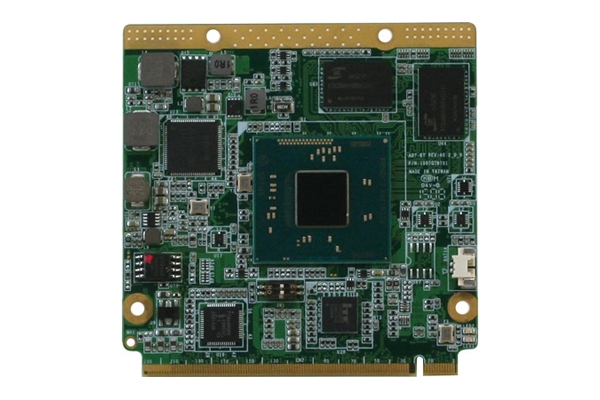

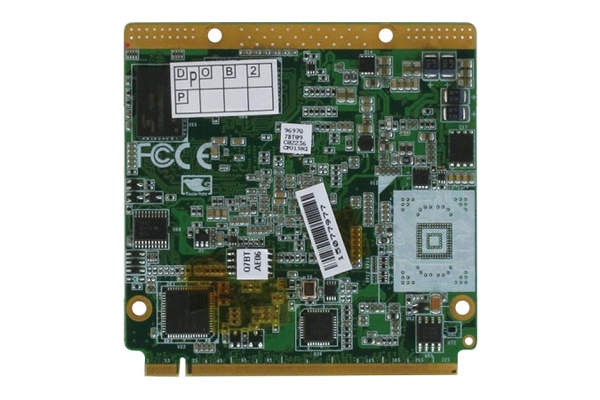

Request a quoteMeasuring 70mm x 70mm, the AQ7-BT is a Qseven module with Qseven Rev.2.0 specification and equips Intel® Atom™ E3800 Series Processor SoC (and the N2807 Processor) with 2GB of onboard DDR3L memory.
It accommodates PCI-Express〔x1〕slots, SMBus, I2C bus, and SDIO interface for expansion; 18/24-bit single-channel LVDS and Digital Display Interface which can convert to DP/HDMI or other gital display format (may need certain bridge IC); Intel®‘s I211/I210 for Ethernet (depending on SKU); and USB 3.0/2.0, SATA II, and serial ports for I/O.
Features
- Intel® Atom™ E3800 series and N2807 Processor
- Onboard DDR3L 2GB Memory
- Gigabit Ethernet x 1
- 18/24-bit Single-Channel LVDS LCD/eDP, HDMI
- High Definition Audio Interface
- SATA x 2
- 2x USB2.0, 1x USB3.0,
- GPIO 8-bit
- 3x PCI-Express 〔x1〕Lanes
- Qseven "Q7" rev2.0, 70mm x 70mm
Overview
Measuring 70mm x 70mm, the AQ7-BT is a Qseven module with Qseven Rev.2.0 specification and equips Intel® Atom™ E3800 Series Processor SoC (and the N2807 Processor) with 2GB of onboard DDR3L memory.
It accommodates PCI-Express〔x1〕slots, SMBus, I2C bus, and SDIO interface for expansion; 18/24-bit single-channel LVDS and Digital Display Interface which can convert to DP/HDMI or other gital display format (may need certain bridge IC); Intel®‘s I211/I210 for Ethernet (depending on SKU); and USB 3.0/2.0, SATA II, and serial ports for I/O.
Users may also acquire the ECB-970 carrier board separately for evaluating and testing the module.
Applications
- Handheld Device
- Test and Measure
- Industrial automation
| Manuals | |
|---|---|
| AQ7-BT_manual.pdf | Download (PDF) |
| Data Sheets | |
|---|---|
| AQ7-BT.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | Intel® Atom™ E3800 series and N2807 Processor |
| Clock Speed | 1.91 GHz |
| Processor Misc. | Intel® Atom™ E3800 Product Family/Celeron® N2000 Series SoC Processor
|
| Memory | |
|---|---|
| RAM | Up to 4GB Memory Onboard |
| Primary Flash | Up to 8GB SSD |
| BIOS/ Bootloader | AMI BIOS |
| Memory Misc. | 2GB RAM standard, 4GB RAM optional |
| Primary IO | |
|---|---|
| GPIO | 8x GPIO |
| Disk Interface | 1x SATA |
| Audio | High definition audio interface |
| Video Out | 24-bit LVDS LCD, DP x 1 |
| Ethernet | Intel® I210IT 10/1000/1000Base-TX |
| USB | 1x USB 3.0 and 6x USB 2.0 |
| Serial Ports | 2x COM |
| Secondary IO | |
|---|---|
| SPI | 1x SPI |
| I2C | 1x I2C port |
| Expansion | |
|---|---|
| Bus Expansion | Qseven Rev.2.0 specification |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, WES 7 - Windows Embedded Standard 7 |
| SOM Type | Microcontroller SODIMM Modules |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 2.75" ×2.75" (69mm × 69mm) |
| Power Requirements | |
|---|---|
| Voltage | 5 V |
| Constant Busy Loop Current | 2 A |
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 60 C (140 F) |
| Upper Operating Humidity | 90% |
| Environmental Misc. | Optional Operating Temperature for E3825 -40 °F ~ 185 °F (-40 °C ~ 80 °C) |
Pricing
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| SOM-AQ7BT-001-R | AQ7-BT-A10-0001, Q7, N2807 2x1.58GHz, 2GB DDR3, 2xSATA, 1xUSB3, 6xUSB2, GbE, SPI, I2C, DDI, HDMI, LVDS | $254.00 |
| SOM-AQ7BT-002-R | AQ7-BT-A10-0002, Q7, E3825 2x1.33GHz, 2GB DDR3, 8GB SSD, SATA, 1xUSB3, 6xUSB2, GbE, SPI, I2C, DDI, HDMI, LVDS | $272.00 |
| SOM-AQ7BT-003-R | AQ7-BT-A10-0003, Q7, E3845 4x1.91Hz, 2GB, DDR3, 4GB SSD, SATA, 1xUSB3, 6xUSB2, GbE, SPI, I2C, DDI, HDMI, LVDS | $389.00 |
