22Api21132 AQ7-IMX6 CPU module is a tough module with temperature support even for harsh environments. It can operate in extreme temperatures from -40°C to +85°C. AQ7-IMX6 CPU module has a measurement of 70mm x 70mm and can support mobile and handheld devices.
Features
- Freescale™ i.MX6 Quad Processor (Automotive Grade or Extended Commercial Grade)/ Dual Lite (Extended
- Commercial Grade)
- Onboard DDR3 Memory 1GB
- Gigabit Ethernet x 1 (KSZ9021RNI)
- 24-bit Dual-channel LVDS LCD, HDMI
- I2S Audio Interface
- 1x SATA
- eMMC (Optional)
- 5x USB2.0 (One for USB OTG),
- 1x PCI-Express x1
- Qseven Module Size, 70mm x 70mm, Qseven Rev. 2.0
Overview

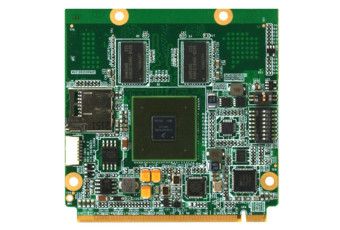

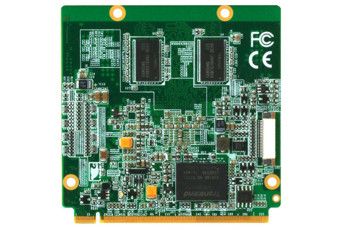

AQ7-IMX6 CPU module is a tough module with temperature support even for harsh environments. It can operate in extreme temperatures from -40°C to +85°C. AQ7-IMX6 CPU module has a measurement of 70mm x 70mm and can support mobile and handheld devices.
The AQ7-IMX6 adopts the Freescale® i.MX6 Dual lite/Quad ARM Cortex A9 Processor. It accommodates 1GB of DDR3 memory on the module. This compact module features an 24-bit dual channel LVDS interface for connecting popular LCD display panels. I/O demands are well met by the five USB 2.0 ports, one SATA ports, one PCI-Express〔x1〕, as well as an optional eMMC interface for additional I/O expansion.
Applications
Digital Signage:
POS
Transportation
Home Automation
Inductrial Automation
| Manuals | |
|---|---|
| AQ7-IMX6_Manual-Rev.A.pdf | Download (PDF) |
| Data Sheets | |
|---|---|
| AQ7-IMX6.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | Freescale® i.MX6 Dual lite/Quad ARM Cortex A9 Processor. |
| Clock Speed | 1.2 GHz |
| Processor Misc. |
|
| Memory | |
|---|---|
| RAM | Up to 1GB DDR3 Memory onboard |
| Primary Flash | up to 8GB eMMC Flash |
| Secondary Flash | SATA |
| Memory Misc. |
|
| Primary IO | |
|---|---|
| GPIO | 8x DIO |
| SDIO | 1x SDIO Port |
| Disk Interface | SATA II |
| Audio | 1x I2S Audio port |
| Video Out | 2x LVDS, HDMI & VGA |
| Ethernet | Micrel® KSZ9021RNI 10/1000/1000Base-TX |
| USB | 5x USB 2.0 (1x shared USB OTG) |
| Serial Ports | 1x 4-wire UART |
| Secondary IO | |
|---|---|
| CAN | 1x can |
| SPI | 1x SPI |
| I2C | 1x I2C port |
| Expansion | |
|---|---|
| Bus Expansion | Qseven Rev.2.0 specification |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux |
| SOM Type | Microcontroller SODIMM Modules |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 2.75" ×2.75" (69mm × 69mm) |
| Power Requirements | |
|---|---|
| Voltage | 5 V |
| Typical Current | 1.075 A |
| Power Misc. | Power Consumption (Typical): Freescale iMX6 Quad 1.2GHZ, DDR3 1GB, eMMC 8GB, 5.375W (w/ECB-970) |
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 60 C (140 F) |
| Upper Operating Humidity | 90% |
| Environmental Misc. | Operating Temperature: 32 °F ~ 140 °F (0 °C ~ 60 °C)
Wide Temperature Option: -40 °F ~ 185 °F (-40 °C ~ 80 °C) |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| ROM-AQ7W6-001-R | AQ7-IMX6W2-A10-01, Q7, i.MX6 4x1.0GHz, 1GB DDR3, 8G eMMC, SATA, 5xUSB2, GBE, CAN, HDMI, DP, LVDS (-40~85C) | $307.00 |
| ROM-AQ7X6-001-R | AQ7-IMX6-A10-01, Q7, i.MX6 4x1.0GHz, 1GB DDR3, 8GB eMMC, SATA, 5xUSB2, GBE, CAN, HDMI, DP, LVDS (0~60C) | $262.00 |
| ROM-AQ7X6-002-R | AQ7-IMX6-A10-02, Q7, i.MX6 4x1.2GHz, 1GB DDR3, w/o eMMC, SATA, 5xUSB2, GBE, CAN, HDMI, DP, LVDS (0~60C) | $225.00 |
| ROM-AQ7X6-003-R | AQ7-IMX6-A10-03, Q7, i.MX6 DLx1GHz, 1GB DDR3, w/o eMMC, 5xUSB2, GBE, CAN, HDMI, DP, LVDS (0~60C) | $186.00 |
