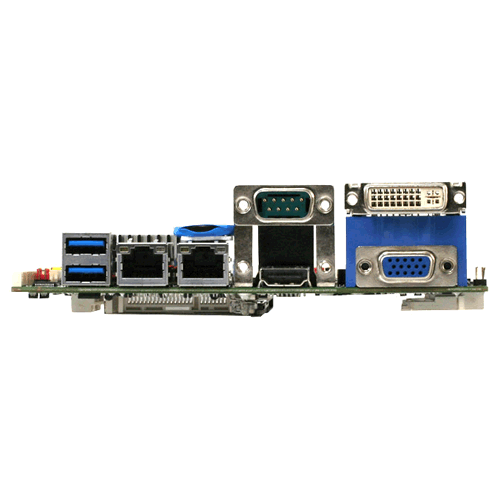

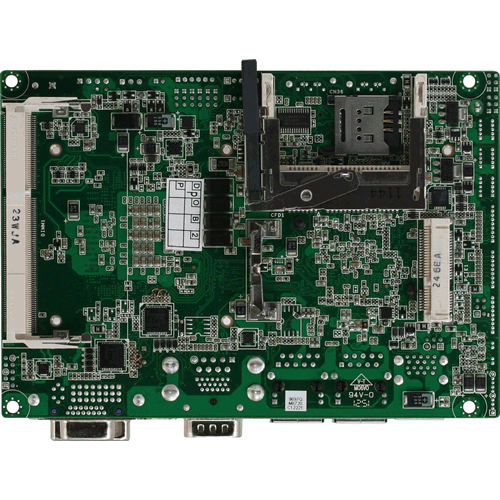

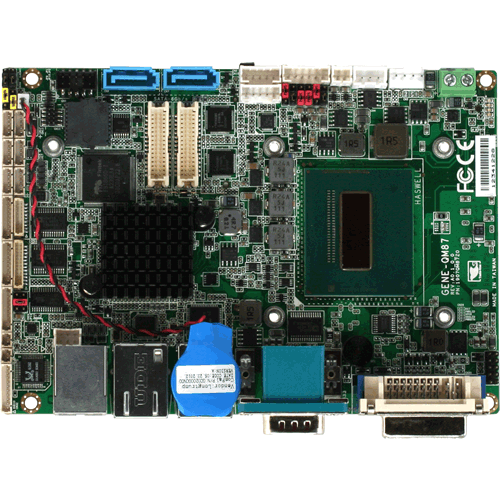

GENE-QM87
22Gpi111GG55
22Gpi111GG55
22Gpi311GG55 The GENE-QM87 supports Intel® 4th Generation Core™ i Series processors which when paired with the Intel® QM87 chipset offers a high performance computing platform with low power consumption. This new product supports 204-pin DDR3L SODIMM at speeds of 1333/1600 MHz, up to 8 GB.
Features
- Onboard Intel® 4th Generation Core™ i5-4402E Intel® QM87
- Up to 8GB DDR3L 1333/1600 MHz
- 3x RS-232, 1x RS-232/422/485
- 2x USB3.0, 6x USB 2.0 Ports
- 2x Gigabit Ethernet, RJ-45
- CRT/DVI/LVDS/HDMI
- Onboard 4/5/8-wire Resistive Touch Screen Controller
- 2x SATA 6.0 Gb/s (Optional RAID), 1x CFast™
- 1x Mini-Card or mSATA (set by jumper), LPC
- HD 2 Channel Line-in, Line-out, Mic-in
- 8-bit GPIO
- BIOS AMI BIOS - 16 MB SPI Flash
- 1x PS/2 Keyboard & Mouse
- Watchdog Timer
- Wake on LAN
- Power Requirement +12V, AT/ATX
- Power Consumption (Typical) Intel® Core™ i5-4402E 1.6 GHz, DDR3L 1600 8GB 2.73A@+12V
- Operating Temperature 32°F ~ 140°F (0°C ~ 60°C)
- Storage Temperature -40°F ~ 176°F (-40°C ~ 80°C)
- Operating Humidity 0% ~ 90% R/H, non-condensing
- 5.75" x 4" (146mm x 101.6mm)
Overview
The GENE-QM87 supports Intel® 4th Generation Core™ i Series processors which when paired with the Intel® QM87 chipset offers a high performance computing platform with low power consumption. This new product supports 204-pin DDR3L SODIMM at speeds of 1333/1600 MHz, up to 8 GB.
One CFast™ and two SATA 6.0Gb/s (Optional RAID) interfaces provide ample storages. With dual Gigabit Ethernet, four COM ports, two USB3.0 and six USB2.0, the GENE-QM87 meets the requirements of today’s demanding applications.
Display requirements are met with an abundance of interfaces such as CRT, HDMI, DVI-I and LCD. The graphic engine adopts Intel® QM87 to offer high definition display function. In addition, it supports up to triple view for two 24-bit Dual-Channel LVDS, one HDMI, one DVI and one CRT.
With all of its integrated features, the GENE-QM87 strikes a balance of performance and price. This versatile product targets Industrial Automation, Entertainment, KIOSK/POS, Transportation, Banking, and Digital Signage.
| Manuals | |
|---|---|
| GENE-QM87 Manual 4th Ed.pdf | Download (PDF) |
| Data Sheets | |
|---|---|
| GENE-QM87.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | Onboard Intel® 4th Generation Core™ i5-4402E Intel® QM87 |
| Memory | |
|---|---|
| RAM | Up to 8GB DDR3L 1333/1600 MHz |
| BIOS/ Bootloader | AMI BIOS - 16 MB SPI Flash |
| Primary IO | |
|---|---|
| GPIO | 8-bit GPIO |
| SDIO | 4x COM |
| Disk Interface | 2x SATA 6.0 Gb/s (Optional RAID), 1x CFast™ |
| Audio | 2 Channel HD Line-in |
| Video Out | CRT/DVI/LVDS/HDMI |
| Ethernet | 2x Gigabit Ethernet with RJ-45 |
| USB | 2x USB3.0, 6x USB 2.0 Ports |
| Serial Ports | 3x RS-232, 1x RS-232/422/485 |
| Secondary IO | |
|---|---|
| Keypad | Yes
|
| PS/2 | Yes
|
| Touch | Onboard 4/5/8-wire Resistive Touch Screen Controller |
| Display | |
|---|---|
| Chipset | Intel® QM87 integrated |
| Resolution | Up to 2048 x 1536 for CRT / Up to 1920 x 1200 for LCD |
| LVDS Interface | 2x LVDS LCD 18/24-bit Dual-Channel |
| HDMI/DVI Interface | HDMI / DVI |
| Multi-Display | Up to 24-bit dual-channel LVDS x 2 |
| Expansion | |
|---|---|
| Bus Expansion | 1x Mini-Card, LPC |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, ROM-DOS 6.22 / MS-DOS 6.22 |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 5.75" ×4" (146mm × 101mm) |
| Weight | 0.88 lb |
| Dimensions Misc. | 5.75" x 4" (146mm x 101.6mm) |
| Power Requirements | |
|---|---|
| Voltage | 12 V |
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 60 C (140 F) |
| Upper Operating Humidity | 90% |
| Environmental Misc. | 0% ~ 90% relative humidity, non-condensing |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| GENE-QM87-A10 | GENE-QM87-A10, i5-4402E 2x2.7GHz, SODIMM, CFAST, mSATA, SATA, 4x COM, 2x USB3, 6x USB2, 2x GbE, Mini-PCIe /w SIM, Touch controller, VGA, HDMI, LVDS, DVI, 0°C ~ 60°C | Call |
| GENE-QM87-A10-01 | GENE-QM87-A10-01, i5-4402E 2x2.7GHz, SODIMM, mSATA, SATA, 4x COM, 2x USB3, 6x USB2, 2x GbE, Mini-PCIe /w SIM, VGA, HDMI, LVDS, 0°C ~ 60°C | Call |
Peripheral Options
| Product # | Description | Price |
|---|---|---|
| Memory | ||
| PER-RAM-00161 | 4GB DDR3L 1.35V SODIMM | Call |
| PER-RAM-00165 | 2GB DDR3L 1.35V SODIMM (Industrial Temp -40 to 85C) | Call |
| Operating Systems | ||
| SL05x-XON-xx | EMAC OE Linux 5.x for x86 (Free installation at time of purchase of SBC & media) | Free |
| S7000-NOL-00020 | Windows Embedded Standard 7 (WES7) & License. SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA (EOL 10/13/2020) | $125.00 |
