SIB-KA103

  • Intel® Atom™ SMARC E3854 QC1.91GHz
  • 8 GB DDR3L RAM
  • 1x 2.5” Bay for SSD mSATA
  • 1x USB 3.0, 2x USB 2.0
  • VGA & HDMI/DP
  • 2x Intel® Gigabit Ethernet

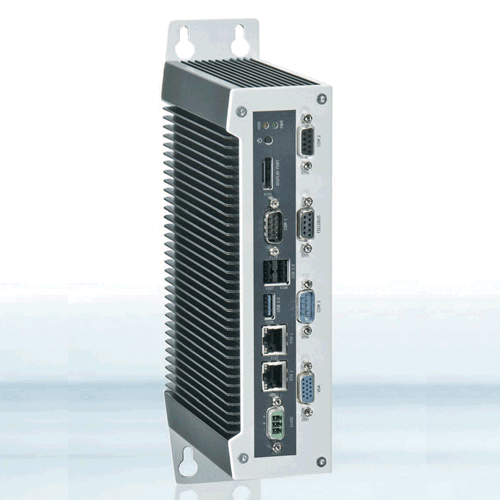

With a wide range of functions and interfaces, the SIB-KA203 is ready for the Internet of Things (IoT) using the wifi options via the mini PCI interface and GPRS and LTE data transmissions via the optional SIM card slot. The SIB-KA203 is equipped with scalable SMARC™ modules. The modular approach ensures simple upgrades to the next processor generation (“Forever Young”) for changing performance requirements. With the “maintenance-free” design, the SIB-KA203 does not require any additional batteries for operation, it is very reliable (high MTBF) and easily adapts to customer requirements.

Features

  • Intel® Atom™ SMARC E3854 QC1.91GHz
  • Up to 8 GB DDR3L RAM SODIMM
  • 1x 2.5” Bay for SSD mSATA
  • 1x RS232, optional: 2nd COM as RS232 or RS422/485, 3rd COM as RS422/485
  • 1x USB 3.0, 2x USB 2.0
  • 1x HDMI/DP, 1x VGA
  • 2x Intel® i210IT Ethernet
  • UEFI BIOS
  • 4x DIO - TTL in, 4x TTL out
  • Watchdog Timer: 255 levels timer interval, setup by software
  • SIM Card: SIM Card holder on board
  • 2x MINI PCIe
  • O/S: Win 8 emb, Win 7, WES7, WEC 7, Linux Fedora, Ubuntu
  • Power Supply: 10 to 30 V DC
  • Typical: 22 W
  • Maximum: 50 Watt
  • Aluminum housing
  • DIN RAIL, Desktop, Wall, Cabinet, VESA Mounting
  • Maintenance-free: no moving parts
  • Fanless, Solid State Discs
  • Battery-free
  • IoT ready - simply connected
  • Operating Temperature: -20°C to 60°C (-4°F to 140°F)
  • Storage Temperature: -40°C to 85°C (-40°F to 185° F)
  • Humidity: 95% @ 40° C (non-condensing)
  • Dimensions: 210 x 65 x 140 mm (8.27” x 2.56” x 5.51”)
  • 2.5 kg (5.51 lb)

Overview

With a wide range of functions and interfaces, the SIB-KA203 is ready for the Internet of Things (IoT) using the wifi options via the mini PCI interface and GPRS and LTE data transmissions via the optional SIM card slot. The SIB-KA203 is equipped with scalable SMARC™ modules. The modular approach ensures simple upgrades to the next processor generation (“Forever Young”) for changing performance requirements. With the “maintenance-free” design, the SIB-KA203 does not require any additional batteries for operation, it is very reliable (high MTBF) and easily adapts to customer requirements.

Manuals
Data Sheets
kbox-a-103.pdf
Download (PDF)

Specifications

Processor
CPU
Intel® Atom™ SMARC E3854 Quad Core
Clock Speed
1.91 GHz
Memory
RAM Type
DDR3L SODMIMM
Primary Flash
mSATA
Secondary Flash
1x 2.5 inch SATA HDD/SSD
BIOS/ Bootloader
UEFI
Primary IO
SDIO
4x TTL in & 4x TTL out
Disk Interface
1x mSATA
Video Out
VGA & HDMI/DP
Ethernet
2x Giga LAN 10/100/1000 Mbps
USB
1x USB 3.0, 2x USB 2.0
Serial Ports
1x RS232 (Optional 2nd RS232/422/485 3rd COM as RS422/485)
Secondary IO
Power Supply
10 to 30 V DC
Misc
Operating Systems
EMAC OE Linux, WES 7 - Windows Embedded Standard 7, Windows 10 IoT Enterprise LTSC

Mechanical and Environmental

Dimensions
Size
8.27" ×2.56" ×5.51" (210mm × 65mm × 139mm)
Weight
5.51 lb
Dimensions Misc.
210 x 65 x 140 mm (8.27” x 2.56” x 5.51”)
Power Requirements
Voltage
10 V
Power Misc.
10 to 30 V DC
Typical: 22 W
Maximum: 50 Watt
Environmental
Low Operating Temperature-20 C (-4 F)
High Operating Temperature60 C (140 F)
Upper Operating Humidity
95%
Environmental Misc.
Operating Temperature: -20°C to 60°C (-4°F to 140°F)
Humidity: 95% @ 40° C (non-condensing)

Pricing

Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
SIB-KA103-100-R KBox-A-103, E3845 QC1.91GHz, 4GB RAM, 16GB eMMC, 2x COM, 2x Gig LAN, 4x DIO, VGA & HDMI/DP Call
SIB-KA103-200-R KBox-A-103, E3815 DC1.45GHz, 1GB RAM, 2x COM, 2x Gig LAN, 4x DIO, VGA & HDMI/DP Call

Additional Options
