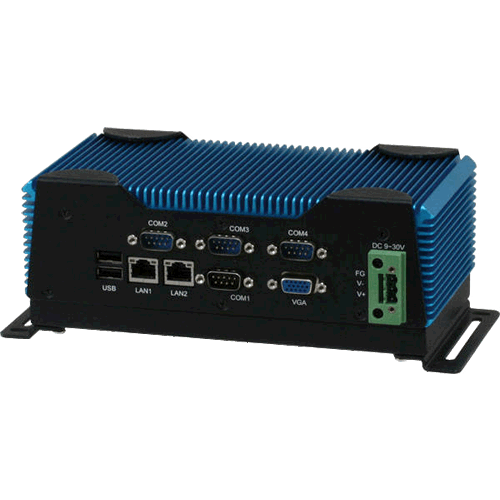

SIB-A6523


  • Intel® AtomTM N2600 Dual Core 1.6GHz
  • 2GB DDR3 SODIMM
  • 1x RS-232/422/485, 3x RS-232
  • 4x USB 2.0 Ports
  • 2x Gigabit Ethernet with RJ-45 connectors
  • 1x VGA

Receive consultation or quotes about this product from our sales staff.

Request a quote
The manufacturer introduces the newest product in the Boxer series, SIB-A6523, which utilizes the Intel® Atom™ N2600 processor: this embedded controller expands its graphics performance greatly with the newest generation of Atom™ processors.

Features


  • Intel® AtomTM N2600 Dual Core 1.6GHz
  • 2GB DDR3 SODIMM
  • 1x RS-232/422/485, 3x RS-232
  • 4x USB 2.0 Ports
  • 2x Gigabit Ethernet with RJ-45 connector
  • 1x VGA
  • 1x 2.5’ SATA 2 (3.0Gb/s) HDD drive bay
  • 1x Mini Card Slot
  • CFastTM slot x 1 (w/ cover protection)
  • Power ON/OFF
  • Power LED x 1, Hard disk active LED x 1, CFast™ slot x 1, Antenna hole x 2
  • DC power input DC 9-30V w/ 3-pin terminal block
  • 8.35”(W) x 3.1”(H) x 2.25”(D)
  • Operating Temperature With W/T HDD:
  • No Airflow:  -22°F ~ 149°F (-30°C ~ 65°C)
  • Ambient with Airflow:  -22°F ~ 158°F (-30°C ~ 70°C)
  • Operating Temperature With W/T Cfast:
  • No Airflow:  -40°F ~ 131°F (-40°C ~ 55°C)
  • Ambient with Airflow:  -40°F ~ 140°F (-40°C ~ 60°C)
  • Storage Humidity: 5~ 50% @ 70°C, non-condensing ( Ambient with Airflow)

Overview


The manufacturer introduces the newest product in the Boxer series, SIB-A6523, which utilizes the Intel® Atom™ N2600 processor: this embedded controller expands its graphics performance greatly with the newest generation of Atom™ processors.

In this era of information explosion, the advertising of consumer products will not be confined to the family television, but will also spread to high-traffic public areas, like department stores, the bus, transportation station, the supermarket etc. The advertising marketing industry will resort to every conceivable mean to transmit product information to consumers. System integrators will need a multifunction device to satisfy commercial needs for such public advertising.

The SIB-A6523 is a standalone high performance controller designed for long-life operation and with high reliability. It can replace traditional methods and become the mainstream controller for the multimedia entertainment market.

Manuals
AEC-6523 Manual 1st Ed.pdf
Data Sheets
AEC-6523_DS.pdf

Specifications


Processor
CPU
Intel® AtomTM N2600 Dual Core
Clock Speed
1.6 GHz
Memory
RAM
2 GB
RAM Type
DDR3 SODIMM
Primary Flash
1x CFastTM slot
Secondary Flash
2.5 Inch SATA HDD
BIOS/ Bootloader
AMI BIOS
Primary IO
Disk Interface
SATA
Video Out
1x VGA
Ethernet
2x 1 Gig Ethernet with 2x RJ-45 Connector
USB
4x USB 2.0 Ports
Serial Ports
1x RS-232/422/485, 3x RS-232
Secondary IO
Keypad
Yes
PS/2
Yes
Power Supply
9-30V DC
Misc
Operating Systems
EMAC OE Linux, Windows Embedded Standard 2009 / WES09 (Windows XPE ), EMAC OE, Qt, WES 7 - Windows Embedded Standard 7

Mechanical and Environmental


Dimensions
Size
8.35" ×3.1" ×2.25" (212mm × 78mm × 57mm)
Weight
8.36 lb
Power Requirements
Voltage
9 V
Power Misc.

DC power input DC 9-30V w/ 3-pin terminal block

Environmental
Low Operating Temperature-30 C (-22 F)
High Operating Temperature65 C (149 F)
Environmental Misc.

Operating Temperature With W/T Cfast: -40°F ~ 131°F (-40°C ~ 55°C)

Pricing


OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
SIB-A6523-000-R AEC-6523-A1M, Intel Atom N2600, 4x COM, 4x USB2, 2x Gig LAN, VGA $795.00

Peripheral Options


Product # Description Price
Peripherals
PER-RAM-00130-R 2GB, DDR3, SODIMM 204P PC3-8500 Call
PER-RAM-00131-R SODIMM 204P PC3-8500 DDR3 2GB industrial temperature (-40 to 80 C) Call
PER-RAM-00132-R SODIMM 204P PC3-10600 DDR3 1GB Call
PER-RAM-00133-R SODIMM 204P PC3-10600 DDR3 2GB Call
Operating Systems
SL040-XON-00010 EMAC OE Linux 4.0 for x86 Free
SX300-000-0000D Windows Embedded Standard 2009 (WES09) & License SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA $125.00
S7000-NOL-00020 Windows Embedded Standard 7 (WES7) & License SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA $125.00
