VOX-150-TS Open-Frame Panel PC

Single Board Computers
Microprocessor Training Systems
Custom Engineering & Manufacturing

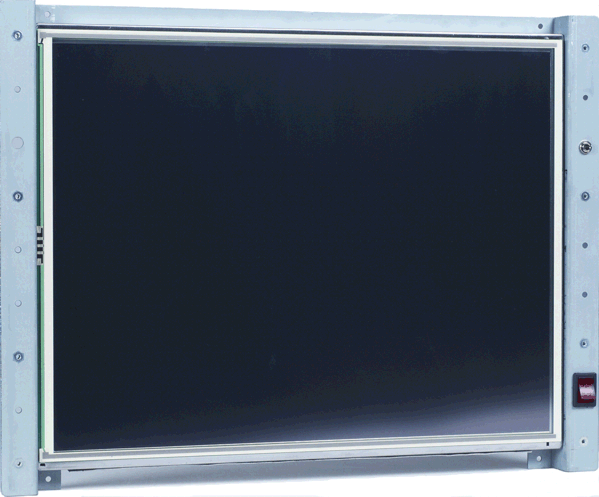

FRONT

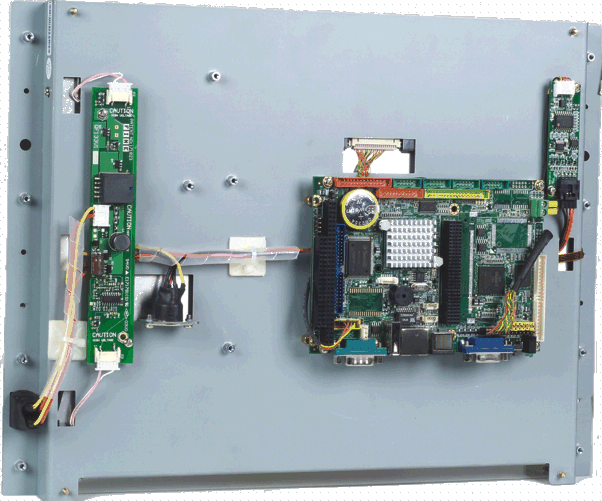

BACK

Features

Specifications

Pricing

VOX-150-TS Manual
VOX-150-TS SBC (VDX-6328) Manual

Setting up a Panel PC can be a Puzzling experience. However,when purchased with an Operating System and Compact Flash, the VOX-150 Compact Panel PC comes ready to run. Just apply power and watch either the Linux X Windows or the Windows XP/CE User Interface appear on the vivid color LCD. Interact with the VOX-150 using the responsive integrated touchscreen. Everything works out of the box, allowing you to concentrate on your application, rather than building and configuring device drivers. Just Write-It and Run-It.

FEATURES

Fanless Vortex86DX 486 DX class processor running at 800MHz
Inexpensive Open-Frame Design
10/100BaseT Ethernet
6 Serial ports with handshake
3 USB 2.0 Host ports
Up to 512 MB of On-Board SDRAM
Compact Flash Socket
Audio with Mic-In/Line-In/Line-Out
Graphic LCD Interface
SVGA (1024 x 768) LCD Resolution
Touchscreen Interface
47 Watt Power Supply Included
FREE Eclipse IDE with GCC & GDB Linux development tools
XP Embedded Build Image available
WinCE 6.0 BSP and SDK available
Can be utilized with other SBCs.

SPECIFICATIONS

Standard Panel PC Functions

CPU: Fanless Vortex86DX 486 DX class processor running at 800MHz
Flash Disk: Compact Flash Socket Type I/II.
RAM: 256 MB 133 MHz SDRAM.
Video: XGI Volari Z9s Chipset with 32MB of Video Memory.
RTC: Battery backed Real Time Clock/Calendar.
Watchdog Timer: Reset-on-Timeout
Expansion: PC/104+ standard compliant

Standard I/O Interfaces

UARTS: 5 serial RS232 serial ports with handshaking & 1 RS232/422/485.
Parallel: Standard Parallel Printer Port.
Audio: On-Board CM119 USB Audio Controller with Mic-In/Line-In/Line-Out.
USB: 3 USB 2.0 High Speed Hosts.
Floppy: Standard Floppy Disk Drive Interface.
IDE: One Ultra DMA 100/66/33, which supports 2 IDE Drives.

LCD

Display Type: 15.0" TFT Color LCD
Resolution: 1024 x 768 XVGA @ 256K Colors
Dot pitch: 0.297mm x 0.297mm
Luminance: 350 (cd/m²)
Backlight: Dual CCFL

Touchscreen

Type: Analog Resistive
Resolution: Continuous
Controller: External USB
Driver: WinCE, XP, Linux
Durability: Over one million touches

Ethernet Interface

Ethernet Interface: 10/100 Base-T Ethernet with on-Board RJ-45 connector

Solid State Disk

Flash Disk: Compact Flash Socket Type I/II.

Mechanical and Environmental

Dimensions: 14.49" W x 10.95" H x 2.45" D
Power Supply Voltage: +5 & +12 Vdc.
Power Consumption: ~20 Watts
Operating Temperature: -20° ~ +60° C (-4° ~ 122° F)

Operating System Compatibility

Linux & RTAI Real-Time Linux
Microsoft Windows XP / WES09
Microsoft Windows CE /CE.net

PRICING (Single Unit. Includes: Integration, Setup,Testing, & Enhanced Support)

VOX-150-0200 .. Open Frame PPC w/Touchscreen, 256MB Ram, & PS	887.00
VOX-150-0300 .. Open Frame PPC w/Touchscreen, 512MB Ram, & PS	960.00

Operating System Options

SL026-XON-10010 .. EMAC OE Linux 4.0 PPC x86	Free
SX300-000-0000D .. Windows EMB STD 2009(WES09) License	125.00
SC600-000-0010D .. Win CE 6.0 Standard License	25.00

Available Options
Operating Systems
Flash Memory (CompactFlash)
PC/104 Modules
Custom and Semi-custom Engineering Services

Product pricing, features, and specifications are subject to change without notice.
