PPC-L106T Panel PC Linux / Windows

Single Board Computers
Microprocessor Training Systems
Custom Engineering & Manufacturing

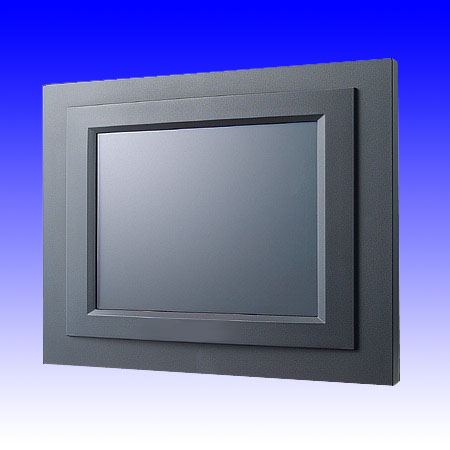

PPC-L106T fanless Panel PC supports the low power AMD Geode LX 800 (500 MHz) processor. It is a powerful and compact Panel PC ideally suited for operator interface (HMI) applications. Its 10.4" 800 x 600 display, 1 GB DDR capacity and 10/100Base-T Ethernet controller allow it run virtually any Operating System making it the ideal choice for many applications. For example, thin clients, health care and other networked environments, in addition to traditional process control industrial automation.

The PPC-L106T is the most versatile 10.4" LCD PC available. The slim chassis fits anywhere and can be mounted in several different configurations. It can be panel mounted, wall mounted or placed upright on a desktop. Integrating the PPC-L106T into a custom system is made simple through its open-system design and comprehensive back panel I/O interface.

Applications

Point-of-information / Point-of sale terminals
Interactive kiosks
Entertainment terminals
Banking / Office automation
Production process control
Factory automation systems

FEATURES

10.4" TFT LCD
AMD Geode™ LX 800 (500 MHz) CPU on board
System memory 256 MB expandable up to 1 GB of DDR
One Compact Flash ® Type I II socket (True IDE Mode)
10/100Base-T Ethernet or Dual LAN (Optional)
Fanless and ultra-low power consumption
Brightness control from 0 ~ 100%
Mini PCI Socket and optional PCI/ISA expansion kit
Same housing as PPC-105T
Automatic data flow control over RS-485

SPECIFICATIONS

General Specifications

CPU: Onboard AMD Geode LX 800 (500MHz)
Display Type: 10.4" TFT LCD
Memory: One 200 pin SODIMM socket up to 1GB DDR, 256 MB built-in.
Network (LAN): 10/100 Base-T Ethernet interface (Dual LAN Optional)
Audio: Built-in Mic-in / Line-out jacks
I/O ports:
- 4 serial ports: RS-232 x 3, RS-232/422/485 x 1
- 1 parallel port, 4 USB 2.0 ports (2 internal, 2 External)
- External VGA port
- PS/2 mouse and keyboard
HDD: One internal 2.5"drive and one external IDE connector
SSD: Supports one internal Type II CompactFlash™ socket
Bus Expansion: Mini PCI socket and optional PCI/ISA expansion kit
Watchdog Timer: 255 level timer interval, setup by software

Power Supply

Output Rating : 65 Watts
Input Voltage: 100-240VAC @50/60 Hz autoranging
Output Voltage: +5V @ 3.5A, +12V @ 4A

LCD Display

Display Type: 10.4" TFT LCD
Max. Resolution/Colors: 800 x 600 @ 256 K
Pixel Pitch: 0.264 x 0.264 (mm)
Luminance (cd/m2): 230 nits
Viewing Angle: 60° (horizontal), 35°(vertical)
Simultaneous Mode: Yes
Backlight MBTF: 20,000 hrs.

Touchscreen (Optional)

Type: Analog resistive, continuous resolution
Light Transmission: 80%
Controller: RS-232 interface (COM 4)
Software Driver: Supports Windows XP, CE
Lifetime: 35 million touches

Mechanical and Environmental

Dimensions (W x H x D): 342 x 265 x 92.4 mm (13.5" x 10.4" x 3.64")
Weight: 3.2 kg (7.1 lbs)
Operating Temperature: 0 ~ 45° C (32 ~ 113° F)
Relative Humidity: 10 ~ 95% @ 40° C (non-condensing)
Shock (Operating): 10 G peak acceleration (11 ms. duration)
EMC: CE, FCC Class B approved, BSMI
Front Panel Protection: Front panel meets NEMA 4 / IP 65
Vibration: 1G

PRICING (Single Unit. Includes: Integration, Setup,Testing, & Enhanced Support)

PPC-L106T-070 ..... amd LX800 10.4" Panel PC	963.00
PPC-L106T-R70 ..... amd LX800 10.4" Panel PC w/Res TS	1092.00

(SSD/HDD not included.)

PPC-100-Stand ...... Stand Kit	115.00
PPC-100-Swingarm ... Swing Arm Kit	102.00
PPC-100-Wall-MT .... Wall Mount Kit	64.00
PPC-105-RACK-MT .... 19" Rack Mounting kit	CALL
PPC-EXP-L106 ........ PCI/ISA expansion kit for PPC-L106T	CALL

Other Options:
System Memory (RAM)
Hard Drives
Flash Memory (CompactFlash)
Operating Systems
Custom and Semi-custom Engineering Services

Product pricing, features, and specifications are subject to change without notice.
