PPC-E5 Compact Panel PC

Single Board Computers
Microprocessor Training Systems
Custom Engineering & Manufacturing

Features

Specifications

Pricing

PPC-E5 Manual (408KB)

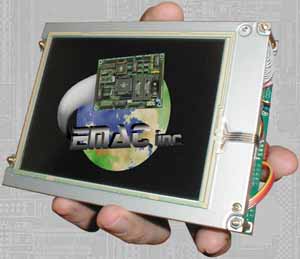

Setting up a Panel PC can be a Puzzling experience. However, the PPC-E5 Compact Panel PC comes ready to run with the Operating System installed on flash disk. Apply power and watch either the Linux X Windows or the Windows CE User Interface appear on the vivid color LCD. Interact with the PPC-E5 using the responsive integrated touchscreen. Everything works out of the box, allowing you to concentrate on your application, rather than building and configuring device drivers. Just Write-It and Run-It.

FEATURES

AMD SC520 133 MHz Processor
5.7" STN Color LCD
Resistive Touchscreen
Realtek™ RTL8139D 10/100 Base-T Ethernet
32 MB On-Board SDRAM Memory, Upgradable to 128 MB
32 MB DiskOnChip® Flash Disk, Upgradable to 1 GB
PC/104 Expansion Bus
Optional Bezel

SPECIFICATIONS

Standard Panel PC Functions

CPU: AMD SC520 133MHz (5x86 133) Processor (P120 equivalent)
BIOS: General Software BIOS
Memory: Supports up to 128 MB on-board SDRAM, 32 MB standard
FDD Interface: Supports up to two floppy disk drives, 3.5" (720KB, 1.44MB, and 2.88MB) and/or 5.25" (360KB and 1.2MB)
IDE Interface: Enhanced IDE interface that supports 2 IDE devices PIO mode 3,4 with bus mastering up to 14 MB/sec.
Serial Ports: One RS-232 and one RS232/422/485 port
Parallel port: One parallel port, supports SPP/EPP/ECP
KB/Mouse Connector: Mini-DIN connector supports PC/AT keyboard and PS/2 mouse
PC/104 Expansion: 104-pin 16-bit PC/104 module connector
Audio: Standard PC speaker with amplified external speaker connection

QVGA/Flat Panel Interface and Analog SVGA Connector

Video Chipset: Lynx SM712 2D video processor
Display Memory: 2/4 MB DRAM
Display Type: Simultaneously supports CRT and flat panel display

LCD

Display Type: 5.7" STN Color LCD
Resolution: 320 x 240 @ 256K Colors
Dot pitch: 0.36mm x 0.36mm
Luminance: 160 (cd/m²)
Viewing Angle: 100°
LCD MTBF: 40,000 Hrs.
Invertor: On-Board
Contrast: Software controlled
Backlight: Side-edge type CFL

Touchscreen

Type: 4 Wire Analog Resistive
Resolution: Continuous
Light Transparency: 79%
Controller: TSharc On-board
Driver: WinCE, DOS, Linux
Durability: Over one million touches

Ethernet Interface

Ethernet Chipset: Realtek™ RTL8139D
Ethernet Type: 10/100 Base-T Ethernet
Ethernet Interface: On-Board RJ-45 connector

Solid State Disk

Supports: DiskOnChip® 2000 for up to 1 GB+ Flash memory

Mechanical and Environmental

Dimensions: 6.18" L x 4.5" W x 2.0" H
Weight: 1.06 lbs.
Power Supply Voltage: +5V (4.57 ~ 5.25V), +12V (11.4V ~ 12.6V)
Power Consumption: +5V @ 1.5A, 12V @ 200 ma.
Operating Temperature: 0 ~ 50° C (32 ~ 122° F)

PRICING (Single Unit. Includes: Integration, Setup, and Testing)

PPC-E5-0000 ... Compact Linux PPC w/Touchscreen 32M FlAsh/Ram	995.00
PPC-E5-0100 ... Compact Linux PPC w/Touchscreen 64M FlAsh/Ram	1035.00
PPC-E5-0010 ... Compact CE.Net PPC w/Touchscreen 32M FlAsh/Ram	1020.00

Optional Add-ons

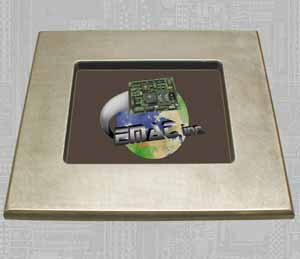

Bezel ............ Aluminum Bezel

USD 45.00

Available Options
Operating Systems
PC/104 Modules
Custom and Semi-custom Engineering Services

Product pricing, features, and specifications are subject to change without notice.
