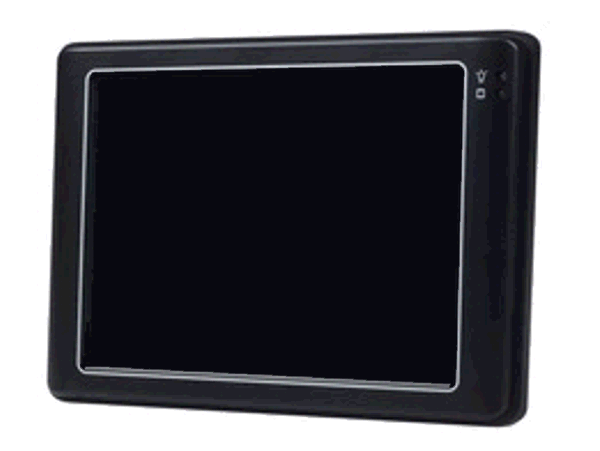

PPC-090T

The PPC-090T is an ultra-compact Panel PC for embedded applications. It has a Vortex86DX2 SoC CPU which consumes only minimal power when running at 933 MHz. Using a 9” WSVGA TFT LCD, the PPC-090T becomes the perfect choice for a limited budget.

  • 933MHz Vortex86DX2 Processor or 1GHz Vortex86DX3 Dual Core Processor
  • L1: 16KB I-Cache, 16KB D-Cache
  • L2:256KB Cache

Product Variations

Name PPC-090T-D2N4N PPC-090T-D2N4N-GE PPC-090T-D2N4NP PPC-090T-D2W4N PPC-090T-D2W4N-GE
Price Call Call Call Call Call
ATTRIBUTES
Screen size 9.1″ 9.1″ 9.1″ 9.1″ 9.1″
CPU Vortex86DX2 Vortex86DX2 Vortex86DX2 Vortex86DX2 Vortex86DX2
Number of Cores 1 1 1 1 1
Speed 933MHz 933MHz 933MHz 933MHz 933MHz
RAM 1GB RAM 1GB RAM 1GB RAM 1GB RAM 1GB RAM
Primary flash Compact Flash Compact Flash Compact Flash Compact Flash Compact Flash
Secondary flash SATA SATA SATA SATA SATA
Serial ports 2xCOM 2xCOM 2xCOM 2xCOM 2xCOM
USB 2.0 3xUSB 3xUSB 3xUSB 3xUSB 3xUSB
Ethernet 10/100BASE-T  10/100BASE-T 10/100BASE-T 10/100BASE-T 10/100BASE-T
Secondary Ethernet  1000BASE-T POE+ 1000BASE-T
Audio Audio Audio Audio Audio Audio
Voltage 12 to 24V 12 to 24V 12 to 24V 12 to 24V 12 to 24V
Temperature 0° to 50°C 0° to 50°C 0° to 50°C -20° to 60°C -20° to 60°C



Name PPC-090T-D3G4N PPC-090T-D3G4NG PPC-090T-D3G5N PPC-090T-D3G5NG
Price Call Call Call Call
ATTRIBUTES
Screen size 9.1″ 9.1″ 9.1″ 9.1″
CPU Vortex86DX3 Vortex86DX3 Vortex86DX3 Vortex86DX3
Number of Cores 2 2 2 2
Speed 1GHz 1GHz 1GHz 1GHz
RAM 1GB RAM 1GB RAM 2GB RAM 2GB RAM
Primary flash Compact Flash Compact Flash Compact Flash Compact Flash
Secondary flash SATA SATA SATA SATA
Serial ports 2xCOM 2xCOM 2xCOM 2xCOM
USB 2.0 3xUSB 3xUSB 3xUSB 3xUSB
Ethernet  10/100BASE-T  10/100BASE-T  10/100BASE-T  10/100BASE-T
Secondary Ethernet 1000BASE-T 1000BASE-T
Audio Audio Audio Audio Audio
Voltage 12 to 24V 12 to 24V 12 to 24V 12 to 24V
Temperature 0° to 50°C 0° to 50°C 0° to 50°C 0° to 50°C

Additional information

PPC STYLE

Enclosed

PPC SCREEN SIZE

6-10"

PPC TOUCHSCREEN TYPE

Resistive

PPC LCD DISPLAY TYPE

WSVGA TFT LCD 9

PPC LCD RESOLUTION

1024 x 600

PPC ASPECT RATIO

16:9

LCD LUMINANCE

300 cd/m2

PROCESSOR TYPE

Vortex86DX2

PROCESSOR CLOCK SPEED

933 MHz

PROCESSOR CORES

Single

RAM

Up to 2 GB DDR2 Onboard

STORAGE

SATA, 1x CompactFlash

VIDEO

N/A

AUDIO FILTER

Line out / Speaker out

AUDIO

HD Audio-Realtek ALC262 CODEC / Line-Out

ETHERNET

1x POE, 1x Integrated 10/100Mbps Ethernet / Giga Ethernet/ Wi-Fi (Optional)

POE

1x POE Optional

Wireless

Wireless (optional)

Bluetooth

N/A

SERIAL PORTS

2x RS232/422/485, 7x RS232 (Optional), 5x RS232 (Optional)

USB 3.0

N/A

USB 2.0

3x USB 2.0

FILTER Serial (Other)

GPIO

CAN

N/A

I2C

N/A

SPI

N/A

GPIO

N/A

Timer/Counters/PWM

N/A

ANALOG IO

N/A

BUS EXPANSION

Internal USB for WIFI

Mini-PCIe

N/A

PCI

N/A

MINI PCI

N/A

SIZE

9.68 x 6.26 x 1.76 inches (W x H x D)

LOW OPERATING TEMPERATURE

0° C

HIGH OPERATING TEMPERATURE

50 C

UPPER OPERATING HUMIDITY

90%

VOLTAGE

12 to 24V

FILTER EXPANSION

USB Internal

Description

The PPC-090T is an ultra-compact Panel PC for embedded applications. It has a Vortex86DX2 SoC CPU which consumes only minimal power when running at 933 MHz. Using a 9” WSVGA TFT LCD, the PPC-090T becomes the perfect choice for a limited budget. The PPC-090T can be used with Linux, Windows CE, and Windows XP (Windows Embedded Standard 2009) environments to become the perfect solution for a highly integrated system.

  • 933MHz Vortex86DX2 Processor or 1GHz Vortex86DX3 Single/Dual Core Processor
  • L1: 16KB I-Cache, 16KB D-Cache
  • L2:256KB Cache
  • 1GB On-Board RAM (2GB or 512MB RAM optional)
  • Compact Flash Type I/II Slot
  • SATA Slim SSD
  • SD Slot (optional)
  • DOS, Windows CE, Windows Embedded Standard 2009, Windows Embedded Standard 7(on DX3), Linux
  • HD Audio-Realtek ALC262 CODEC
  • Rear IO expansion Available 7x RS232 ports or 16x GPIO and 5x RS232 ports(Optional)
