Panel PCs

Open-Frame PPCs

Setting up a Panel PC (PPC) can be a Puzzling experience. However, EMAC's Panel PCs come ready to run with the Operating System installed on flash disk or hard drive. Apply power and watch either the Windows or Linux User Interface appear on the vivid color LCD. Interact with the PPC using the responsive integrated touchscreen. Everything works out of the box, allowing you to concentrate on your application, rather than building and configuring device drivers. Just Write-It and Run-It.

If you need an LCD for your SBC click here: LCD Panels and Touchscreens Kits.



PPC-E7 Shown



Name

CPU

Memory

Serial/
Parallel Ports

Disk
Interfaces

Video / Touchscreen

Exp.
Bus Type

Type/
Size (in.)

Other I/O

PPC-E4

Cirrus
Fanless
ARM9
200 Mhz

128 MB SDRAM On-Board max.

2 RS232
1 RS-232/485,

SD, SDHC
Flash Disk

4.3 " TFT
Color WQVGA LCD
480 x 272
4-Wire Analog Resistive

None

Open- Frame/
4.8" W 3.0" H 1.2" D

10/100 Ethernet,
USB 2.0, A/D, Audio,WatchDog

PPC-E7

Cirrus
Fanless
ARM9
200 Mhz

128 MB SDRAM On-Board max.

2 RS232
1 RS-232/485,

SD, SDHC, MMC
Flash Disk

7" TFT
Color WVGA LCD
800 x 480
4-Wire Analog Resistive

PCD-E12

Open- Frame/
7.55" W 4.15" H 1.5" D

10/100 Ethernet,
USB 2.0, A/D, Audio,WatchDog

PPC-E7+

Fanless ARM9 400 MHz

Up to
256 MB DDR2 RAM

2 RS232
1 RS-232/422/485

SDIO SDHC/ MMC
Flash Disk

7" TFT
Color WVGA LCD
800 x 480
4-Wire Analog Resistive

PCD-E12

Open- Frame/
7.55" W 4.15" H 1.5" D

10/100 Ethernet,
USB 2.0 Host,
USB 2.0 OTG,
I2C, A/D, Audio,WatchDog

PPC-E10
Preliminary

Fanless ARM9 400 MHz

Up to
256 MB DDR2 RAM

2 RS232
1 RS-232/422/485

SDIO SDHC/ MMC
Flash Disk

10" TFT
Color WVGA LCD
1024 x 600
4-Wire Analog Resistive

PCD-E12

Open- Frame/

10/100 Ethernet,
USB 2.0 Host,
USB 2.0 OTG,
I2C, A/D, Audio,WatchDog

VOX-084

Vortex DX 800 MHz

Up to
512 MB DDR2 RAM On-Board

5 RS232
1 RS-232/485,

1x FDD/
1x 2.5" IDE/ CompactFlash™ Type I/II socket

8.4" TFT
Color WVGA LCD
800 x 600
4-Wire Analog Resistive

PC/104

Open- Frame/
9.07" W 5.90" H 2.06" D

10/100 Ethernet,
USB 2.0, Audio,WatchDog

VOX-104

Vortex DX 800 MHz

Up to
512 MB DDR2 RAM On-Board

5 RS232
1 RS-232/485,

1x FDD/
1x 2.5" IDE/ CompactFlash™ Type I/II socket

10.4" TFT
Color WVGA LCD
800 x 600
4-Wire Analog Resistive

PC/104

Open- Frame/
11.92" W 8.03" H 2.45" D

10/100 Ethernet,
USB 2.0, Audio,WatchDog

VOX-121

Vortex DX 800 MHz

Up to
512 MB DDR2 RAM On-Board

5 RS232
1 RS-232/485,

1x FDD/
1x 2.5" IDE/ CompactFlash™ Type I/II socket

12.1" TFT
Color WVGA LCD
800 x 600
4-Wire Analog Resistive

PC/104

Open- Frame/
13.59" W 9.39" H 2.45" D

10/100 Ethernet,
USB 2.0, Audio,WatchDog

VOX-150

Vortex DX 800 MHz

Up to
512 MB DDR2 RAM On-Board

5 RS232
1 RS-232/485,

1x FDD/
1x 2.5" IDE/ CompactFlash™ Type I/II socket

15.0" TFT
Color WVGA LCD
1024 x 768
4-Wire Analog Resistive

PC/104

Open- Frame/
14.49" W 10.95" H 2.45" D

10/100 Ethernet,
USB 2.0, Audio,WatchDog

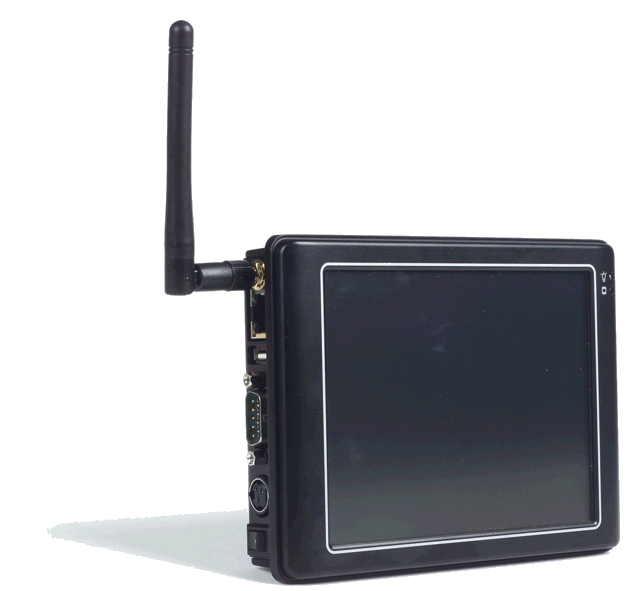

PDX-057 Shown



Name

CPU

Memory

Serial/
Parallel Ports

Disk
Interfaces

Video / Touchscreen

Exp.
Bus Type

Type/
Size (in.)

Other I/O

PDX-057

Vortex DX 1 GHz

Up to
512 MB
DDR2
on-board

1 RS-232/485,

1 IDE/
Compact Flash Micro SD

5.7" TFT
Color LCD
640 x 480
Analog Resistive

Mini PCI

Enclosed
6.0" W 4.4" H 1.3" D

10/100 Ethernet, KB/Mouse,
USB 2.0, WatchDog

PDX-089

Vortex DX 1 GHz

512 MB
DDR2
on-board

1 RS-232/485,

1 IDE/
Compact Flash Micro SD

8.9" TFT
Color LCD
1024 x 600
Analog Resistive

Mini PCI

Enclosed
9.31" W 5.75" H 1.38" D

10/100 Ethernet, KB/Mouse,
USB 2.0, WatchDog

PPC-106T

AMD
Fanless
Geode
LX800
500MHz

Up to
1 GB DDR
SODIMM

3x RS-232, 1x RS232/ 485, 1x Parallel

1x 2.5" IDE/ CompactFlash Type I/II socket

10.4" TFT Color LCD
800 x 600
0.26 pitch/
Analog Resistive

One
Mini PCI
& One
PCI/ISA slot

Enclosed/
13.5" W 10.4" H 3.6" D

USB 2.0, 10/100 Ethernet, KB/Mouse, Audio,
WatchDog

PPC-L127T

Fanless
Celeron M 1 GHz

Up to
1 GB DDR
DIMM

3 RS232
1 RS-232/485,
1x Parallel

CompactFlash Type I/II socket
IDE

12.1" TFT
Color LCD
800 x 600/
Analog Resistive

One
Mini PCI
& One
PCI/ISA slot

Enclosed/
13.5" W 10.6" H 2.8" D

Ethernet,
USB 2.0,
KB/Mouse, Audio, GPIO,
Battery Bckup

AHP-1122

Fanless
Atom D510 1.66Ghz

Up to 2GB DDR2 SODIMM

1 RS232
1 RS-232/485

CompactFlash Type I/II socket
SATA

12.1" TFT
Color LCD
1024 x 768/
Analog Resistive

2 Mini-PCIe Sockets

Enclosed/
12.5" W 9.6" H 2.5" D

GB Ethernet,
USB 2.0, Optional WiFi/RFID

AFL-08B

Fanless
Atom N270
1.6 GHz

1 GB built in
Up to 2 GB
SODIMM DDR

1 RS232
1 RS-232/485,
1x Parallel

CompactFlash Type II socket
IDE

8 " TFT
Color LCD
800 x 600/
Analog Resistive

One Mini-PCIe Socket

Enclosed/
9.2" W
7.2 " H 1.65 " D

GigEthernet,
USB 2.0,
KB/Mouse, Audio

PPC-IP15

Atom N270
650 MHz or 1 GHz

Up to
2 GB DDR2 SDRAM

2x RS-232, 1x RS-232/ 485, l

80GB HD CompactFlash (optional)

15" TFT Color LCD
1024 x 768

One each Mini-PCI, PCI, and PCIe Socket

Enclosed/
15.75" W 12.60 " H. 3.14" D

USB 2.0, 10/100/1000 Ethernet, Audio, KB/Mouse
VGA

PPC-L156T

Fanless
Celeron M 1.6GHz

Up to
2 GB DDR SDRAM

3x RS-232, 1x RS-232/ 485, 1x Paralle

CompactFlash Type I/II socket
2.5" IDE

15" TFT Color LCD
1024 x 768
0.297 pitch/
Analog Resistive (Optional)

One Mini-PCI Socket

Enclosed/
16.3" W 13.1" H. 3.0 " D

USB 2.0, 10/100 Ethernet, Audio, KB/Mouse

PPC-S154T

Pentium® IV-M Socket 478 up to 2.2 GHz

Up to
1 GB DDR SDRAM

2x RS-232

1x FDD/
1x 2.5" IDE/
CD-ROM/ DVD/
CompactFlash Type II socket

15" TFT Color LCD
1024 x 768
0.297 pitch/
Analog Resistive (Optional)

One Mini-PCI Socket

Enclosed/
14.76" W 11.77" H 1.93" D

USB 2.0, 10/100 Ethernet, Audio, KB/Mouse
