AOP-8120 Panel PC

Single Board Computers
Microprocessor Training Systems
Custom Engineering & Manufacturing

This page is for reference only.

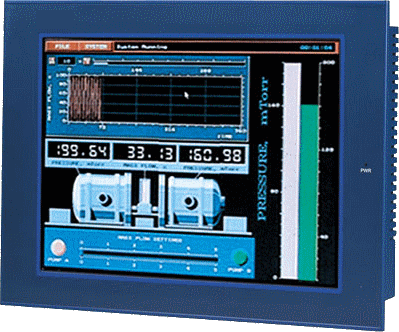

The AOP-8120 Panel PC utilizes a Ultra Low Voltage, Low Power Celeron Fanless processor making it extremely rugged and ideal for industrial applications such as a Human Machine Interface (HMI). It is a PC-based system with 12.1" color TFT LCD display, on-board Ethernet controller, multi-COM port interfaces and an audio controller. With a built-in internal provision for either a Hard drive or Flash drive, the AOP-8120 is as compact and user friendly as a multi-function computer. In addition, its "fit anywhere" design makes it very flexible and able to be used in many different kinds of installations. It can be wall mounted, panel mounted or stood upright on a desktop.

For system integrators, this simple, complete, compact and highly integrated multimedia system let you easily build a panel PC into your applications. Common industrial applications include factory automation systems, precision machinery, and production process control. It is also suitable for many non-industrial applications, including interactive kiosk systems, entertainment management, and car park automation. Our panel PC is a reliable, cost-effective solution to your application's processing requirements.

Applications

Point-of-information / Point-of sale terminals
Interactive kiosks
Entertainment terminals
Banking / Office automation
Production process control
Factory automation systems
Clean-room environments

FEATURES

12.1" TFT SVGA LCD
Intel ULV Celeron Fanless 650MHz Processor
System memory 256 MB expandable up to 1 GB of DDR
Compact Flash socket
Dual 10/100Base-T with optional Gigabit Ethernet
Fanless and ultra-low power consumption
Mini PCI Socket
8 In or 8 Out General Purpose Digital I/O
Supports Dual Independent Display

SPECIFICATIONS

General Specifications

CPU: Intel ULV Celeron 650MHz Processor
Display Type: 12.1" TFT SVGA LCD
Memory: 184 pin SDRAM up to 1GB DDR, 256 MB built-in.
Network (LAN): Dual 10/100 Base-T Ethernet interface (Gigabit LAN Optional)
Audio: Built-in Mic-in / Line-out jacks, S/P DIF-out
I/O ports:
- 3 serial ports: RS-232 x 2, RS-232/422/485 x 1
- 1 parallel port
- 4 USB 2.0 ports (2 internal, 2 External)
- External VGA port
- PS/2 mouse and keyboard
HDD: One internal 2.5" IDE Interface
SSD: Supports CompactFlash™
Bus Expansion: Mini PCI socket (Wireless capability)

Power Supply

Output Rating : 65 Watts
Input Voltage: 90-64VAC @47-63 Hz
Output Voltage: +5V @ 10A, +12V @ 1.5A, -12V @ 0.3A

LCD Display

Display Type: 12.1 " Color TFT LCD
Max. Resolution/Colors: 800 x 600 @ 256 K
Pixel Pitch: 0.3075 x 0.3075 (mm)
Luminance (cd/m2): 200 cd/m2, 350 optional
Viewing Angle: 90/140 ° (horizontal), 40/120° (vertical)
Simultaneous Mode: Yes

Touchscreen

Type: 8-wire analog resistive
Light Transmission: >78%
Controller: RS-232 interface (COM 4)
Software Driver: Supports Windows XP, CE
Lifetime: 1 million touches

Operating Systems

Linux (Flash or Hard drive)
Windows XP Professional (Hard drive only)
Windows XP Embedded (Flash or Hard drive)

Mechanical and Environmental

Dimensions (W x H x D): 317 x 243 x 64mm (12.5" x 9.5" x 2.5")
Weight: 4.5 Kg (10lb)
Operating Temperature: 0 ~ 40° C (32 ~ 104° F)
Relative Humidity: 10 ~ 90% @ 35 ° C (non-condensing)
Shock (Operating): 15 G peak acceleration (11 ms. duration)
EMC: CE, FCC Class A approved

PRICING (Single Unit. Includes: Integration, Setup,Testing, & Enhanced Support)EOL

AOP-8120HT ... 650mhZ CELRON m pANEL PC W/ Touch	CALL
AOP-8120WT ... 650mhZ CELRON m pANEL PC W/ Touch (350 NITS)	CALL

(SSD/HDD not included.)

STAND-8150B0 ... Stand Kit	CALL
ARM-LA0115 ..... Swing Arm Kit	CALL
ARM-WK075 ...... Wall Mount Kit	CALL

Other Options:
System Memory (RAM)
Hard Drives
Flash Memory (CompactFlash)
Operating Systems
Custom and Semi-custom Engineering Services

Product pricing, features, and specifications are subject to change without notice.
