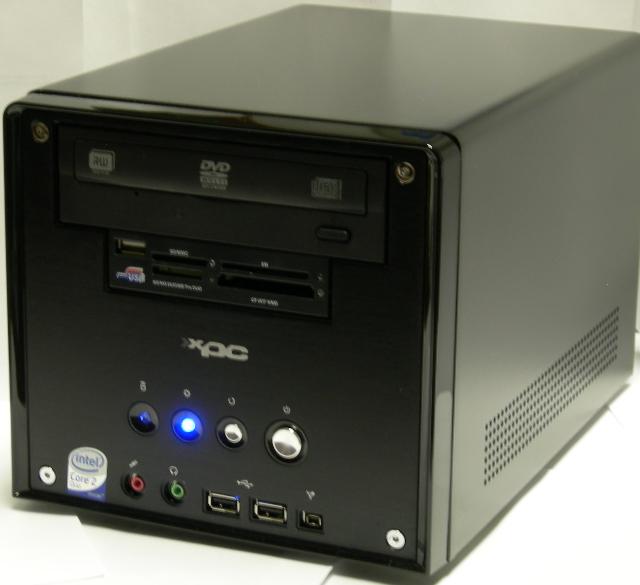

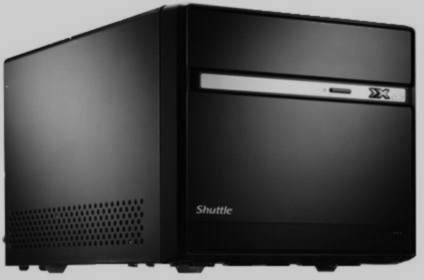

If you are new to Linux Embedded Development or just want to get a head start the EMAC Linux Development Computer (LDC) is just the ticket. This small footprint desktop computer will provide you with the tools you need to develop & debug Linux application for EMAC SBCs out of the box. When combined with one of our SoM Module and Carrier Systems , Single Board Computer or an Embedded Single Board Server system, you are only a short time away from your marketable product.

The LDC is based on Debian GNU/Linux and includes GCC Cross Compilers, GDB Debugger, Eclipse IDE and board SDK. In addition it includes TFTP, NFS and SSH servers. Distribution Sources are also included.

The LDC system is designed to offer the user a preconfigured system to help speed the to time to market for their project. This system is offered with the software already installed and configured on the system so the end user is ready to start compiling and debugging their software the day they receive the system. The small size of the system is to offer portability of the system between different working locations without major equipment moving.

The system is based on the Intel Core i series processor with 4GB of DDR3 memory and a high-speed Serial ATA 2.0 hard drive. The i3 processor is chosen to offer a dual processor environment, optimized for fast compiling, so there is less time spent waiting on the compiler and more time spent developing and debugging. A DVD-RW drive is included for easy backups, archives and portability of your code and applications to DVD and CD media. A built in MMC/SD card reader is included to ease and speed software installation onto media for testing on embedded systems. The system is shipped with two high-speed RS232 serial ports for the multiple serial connections needed to download and debug software on different hardware platforms. Dual video is an optional upgrade and offers the ability to hook up two LCD monitors.

LDC Software Features

• Debian GNU/Linux 6.0 (32-bit standard, 64-bit optional)
• GCC Cross Compilers including x86
• GDB Source Level Debugger supports debugging via Ethernet
• Eclipse Integrated Development Environment (IDE)
• Software Development Kit (SDK) for Target board
• TFTP server
• NFS server
• SSH server


LDC Hardware Features

• Intel Core i series processor
• 4GB DDR3 Memory
• Serial ATA 2.0 hard drive 3Gb/s
• SATA DVD-RW drive
• On-board Audio with Rear and Front Audio Ports
• Internal MMC/SD card reader
• External USB media card card reader
• Two High-Speed RS232 Serial Ports
• One Parallel Port
• 10/100/1000 Ethernet connection
• Five USB 2.0 connections
• One eSATAp Port (powered eSATA/eSATA/USB combo)
• Nvidia Geforce video (supports dual-video)
• Small footprint: 13.11"(L) x 8.46"(W) x 8.03"(H)


Cables Included with the LDC

• Standard Ethernet cable
• Null Modem RS232 Serial cable
• Standard RS232 Serial cable

Peripherals Included with the LDC

• USB Keyboard
• USB Optical Mouse
• Speakers (optional)
